price: 2159 CZK

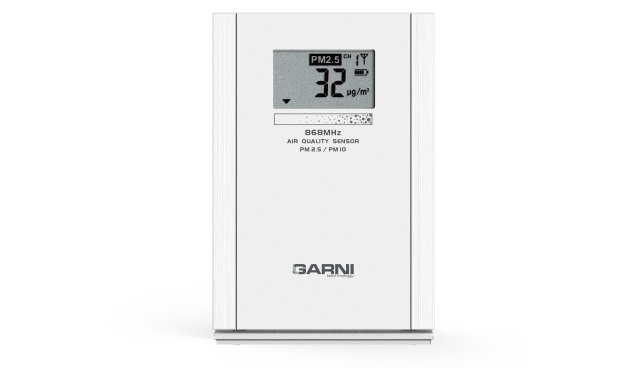

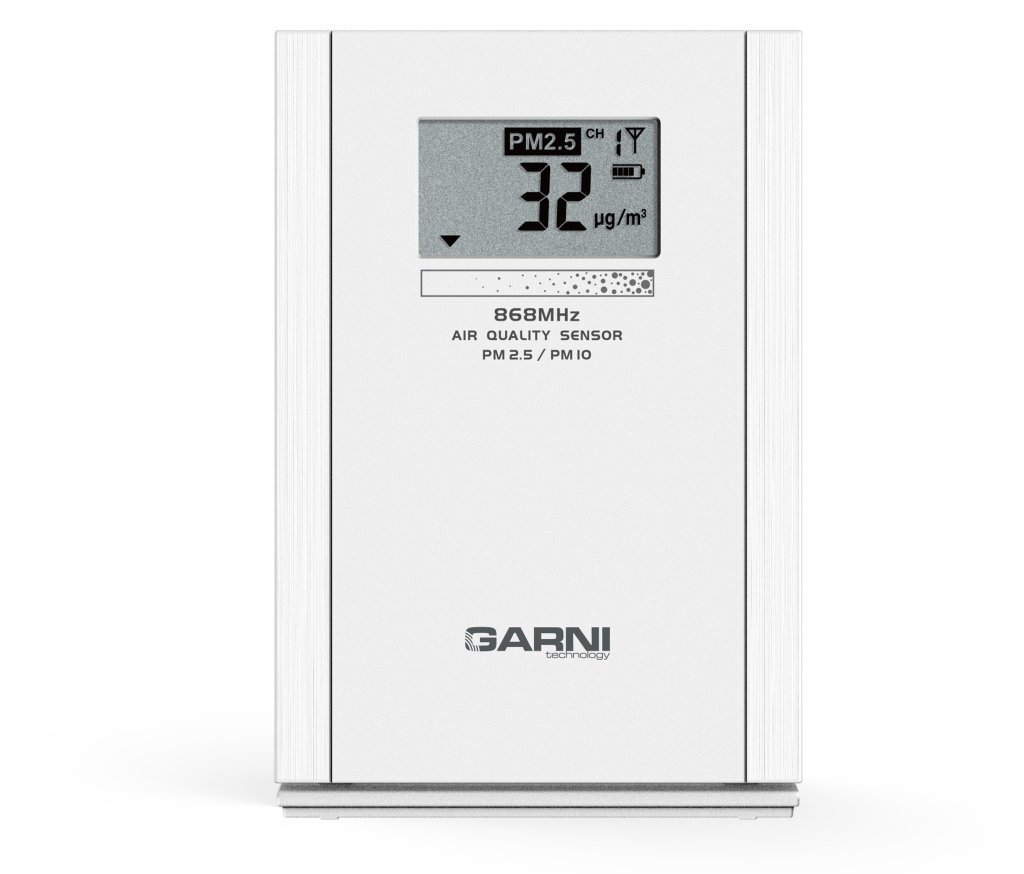

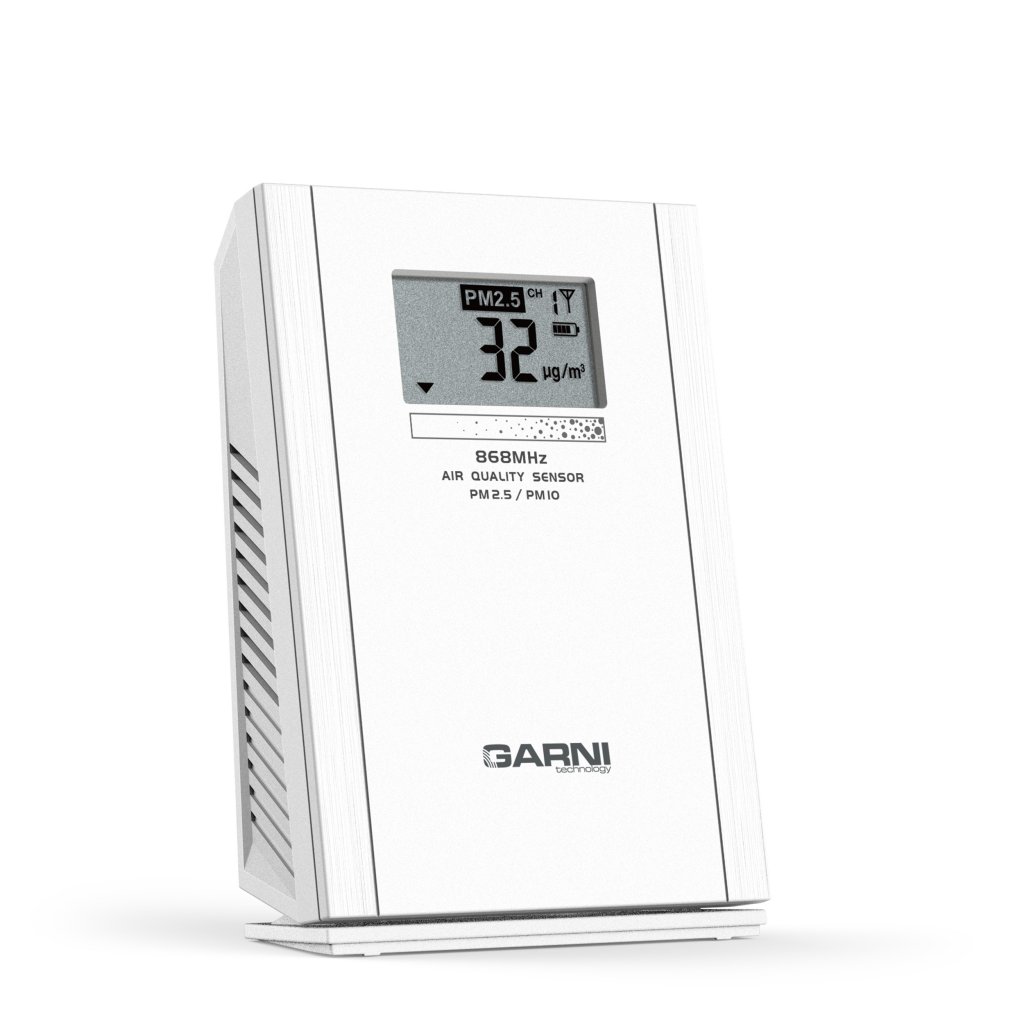

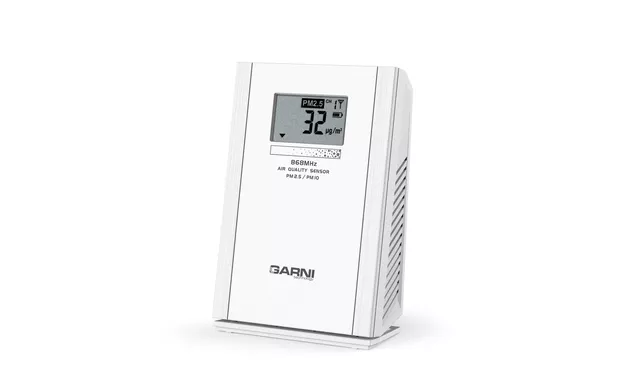

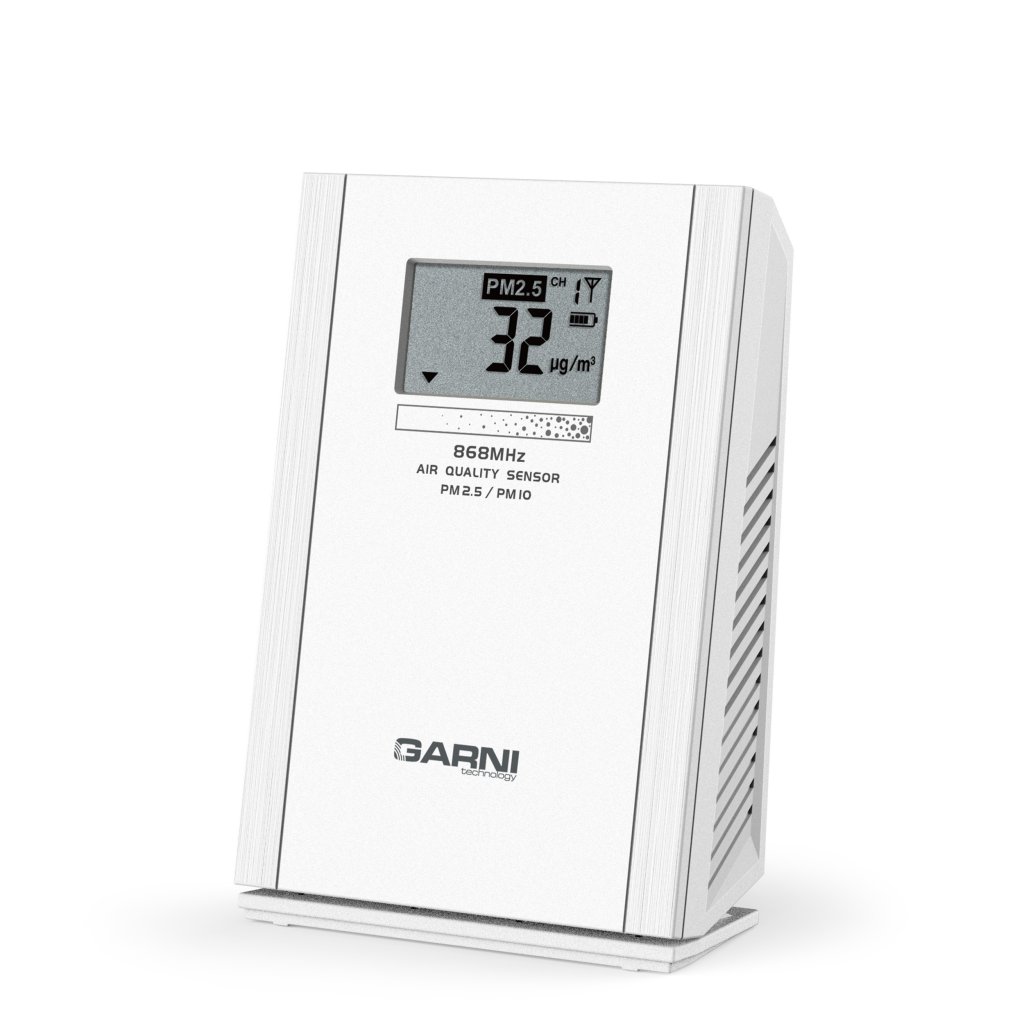

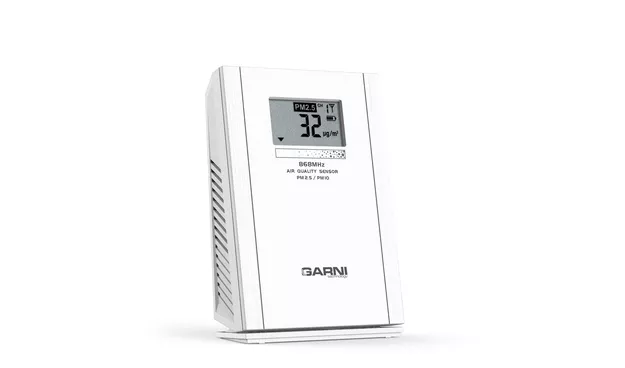

Wireless indoor air quality sensor for measuring PM2.5 and PM10 particulate matters, designed for GARNI 204 OneCare air quality monitor.

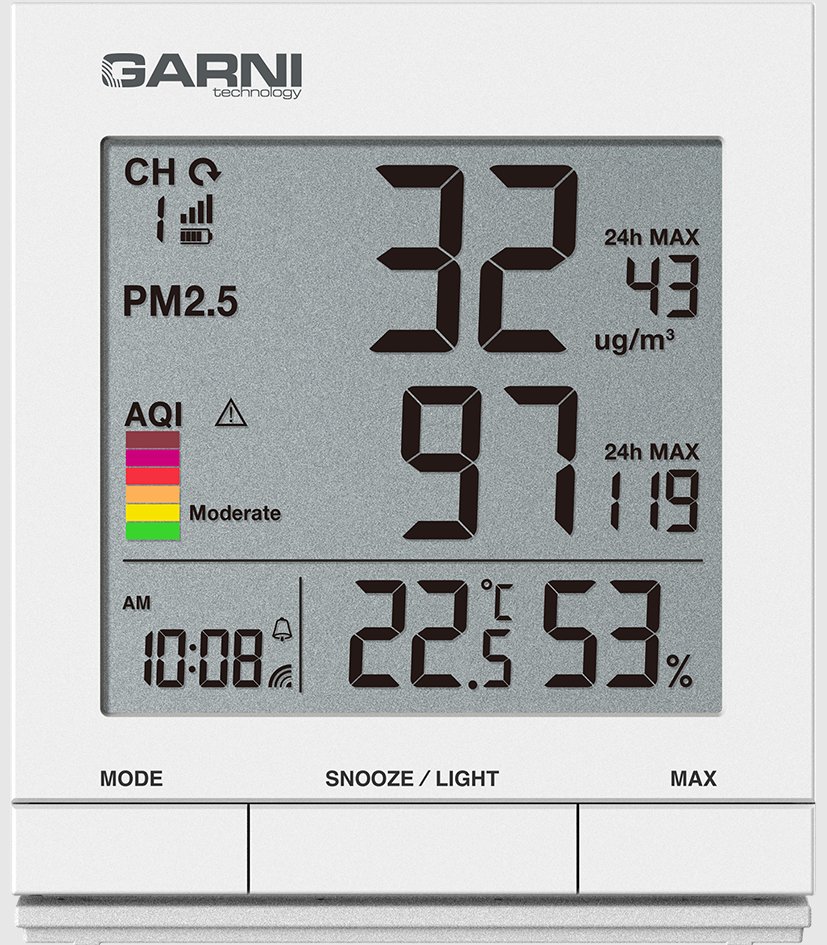

The GARNI 204 OneCare air quality meter is designed for indoor using. It measures the concentration of PM2.5 or PM10 particulate matter measured by the GARNI 104Q wireless sensor (one wireless sensor is included in the package). It measures temperature and relative humidity as well. The Swiss sensor SENSIRION series SPS is used for measuring solid particles (PM).

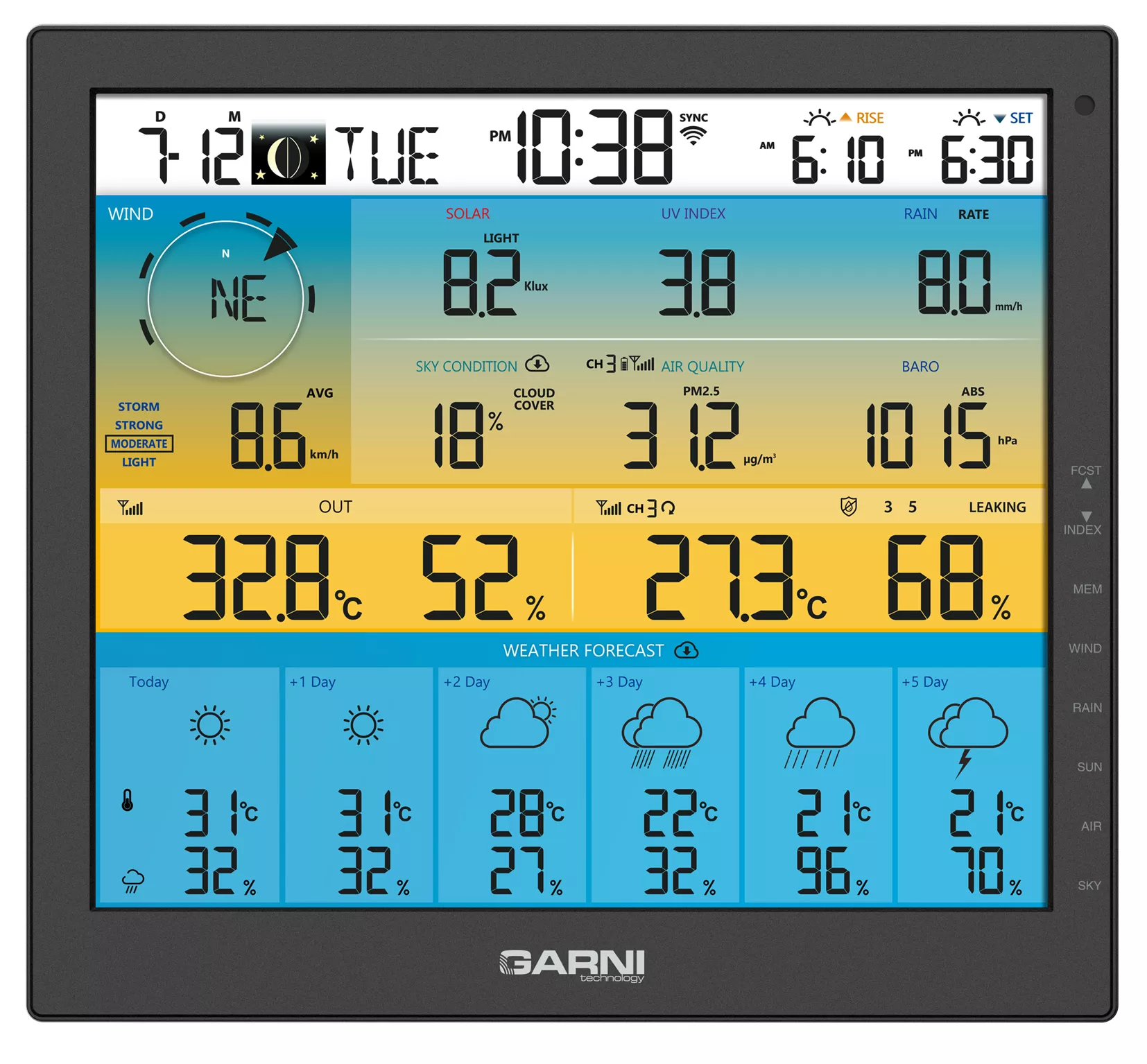

The Wi-Fi weather station with 6-day forecast and professional integrated 7-in-1 wireless sensor. It collects accurate and detailed weather data, which are uploaded in real time to the ProWeatherLive weather server with the built-in Wi-Fi module and local Wi-Fi network. This weather server allows automated uploading of weather station data and free access to all of them from anywhere with internet access, via a web browser or mobile app.
| Designed for the | GARNI 204 OneCare |
|---|---|
| Transmission frequency | 868 MHz |
| Signal range | up to 100 m in open space |
| Data transmission interval | 60 s when powered by USB adapter when powered by batteries, the sensor automatically measures PM2.5 and PM10 concentrations every 10 minutes by default. |
| Number of Channels | 4 |
| Display | Yes |
| Dimensions of the wireless sensor display | 37 x 21 mm |
| Size of digits | 10 mm |
| Power supply | 3 pcs 1.2V NiMH rechargeable AA batteries (pencil, included) USB adapter (USB cable included, adapter not included) |
| Overall dimensions | 82 x 120.5 x 41 mm |
| Weight | 145 g (without batteries) |
| Color | white |
| Option to stand / hang up the sensor | Yes Yes |
| Degree of protection | for indoor use |
| Specification of sensors for measuring air quality | SENSIRION, SPS series, laser |
| Particle measurement range (PM) / tolerance | PM2.5 and PM10 1 to 1000 ug / m3 ± 10 ug / m3 for measurements 0 to 100 ug / m3 ± 10% for measuring 100 to 1000 ug / m3 |
| Particle resolution (PM) | 1 ug / m3 |
| Particle measurement method (PM) | laser |
| Particulate matter (PM) measurement update interval | 60 s |
| Air / air quality measurement | Yes |
