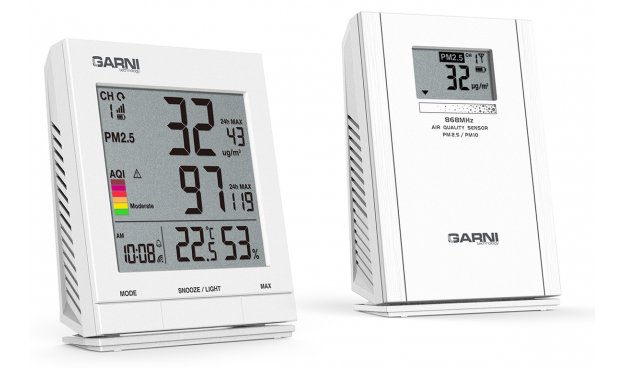

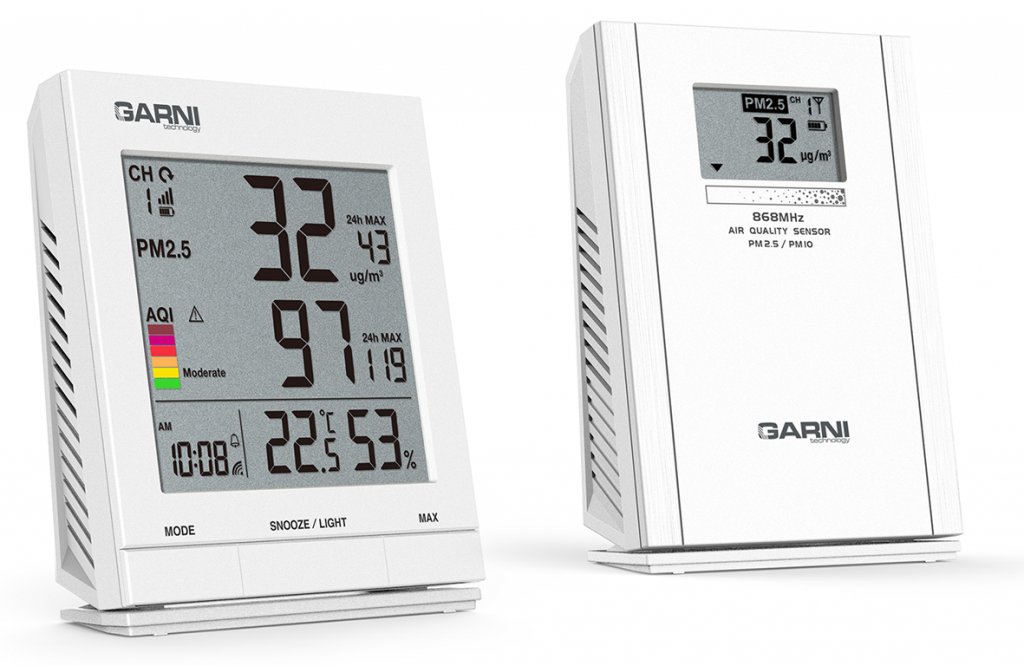

The GARNI 204 OneCare air quality meter is designed for indoor using. It measures the concentration of PM2.5 or PM10 particulate matter measured by the GARNI 104Q wireless sensor (one wireless sensor is included in the package). It measures temperature and relative humidity as well. The Swiss sensor SENSIRION series SPS is used for measuring solid particles (PM).

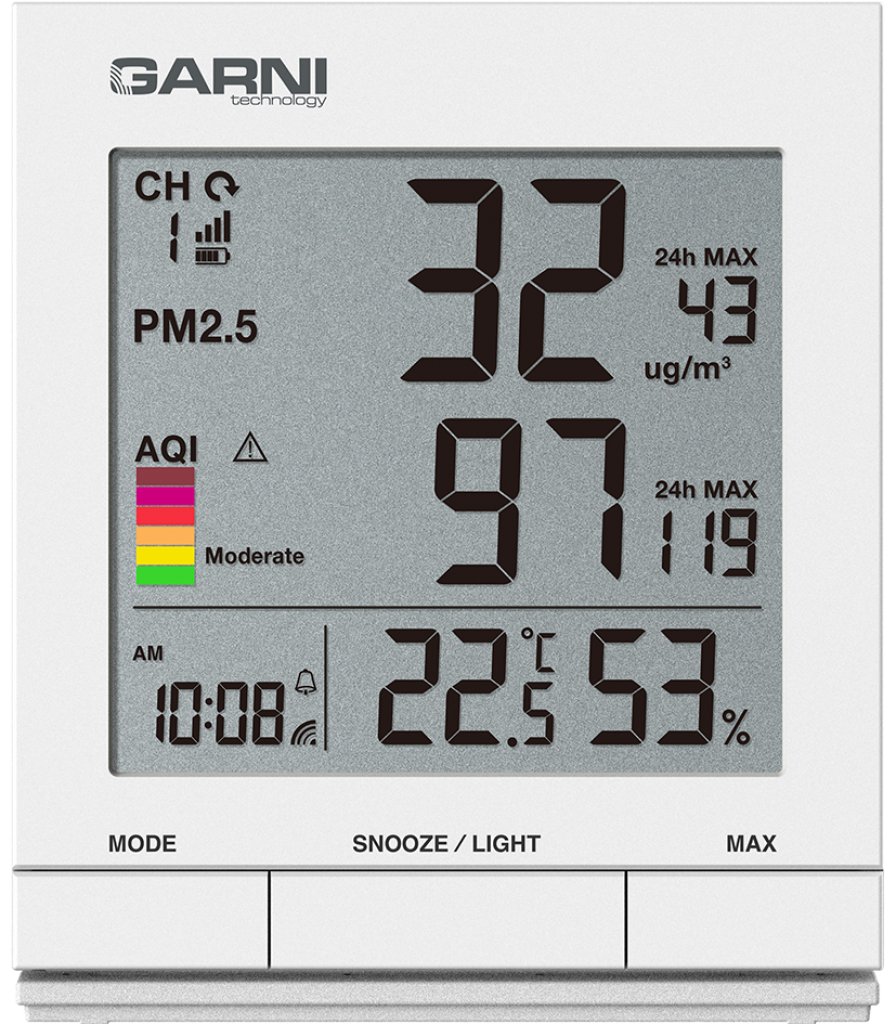

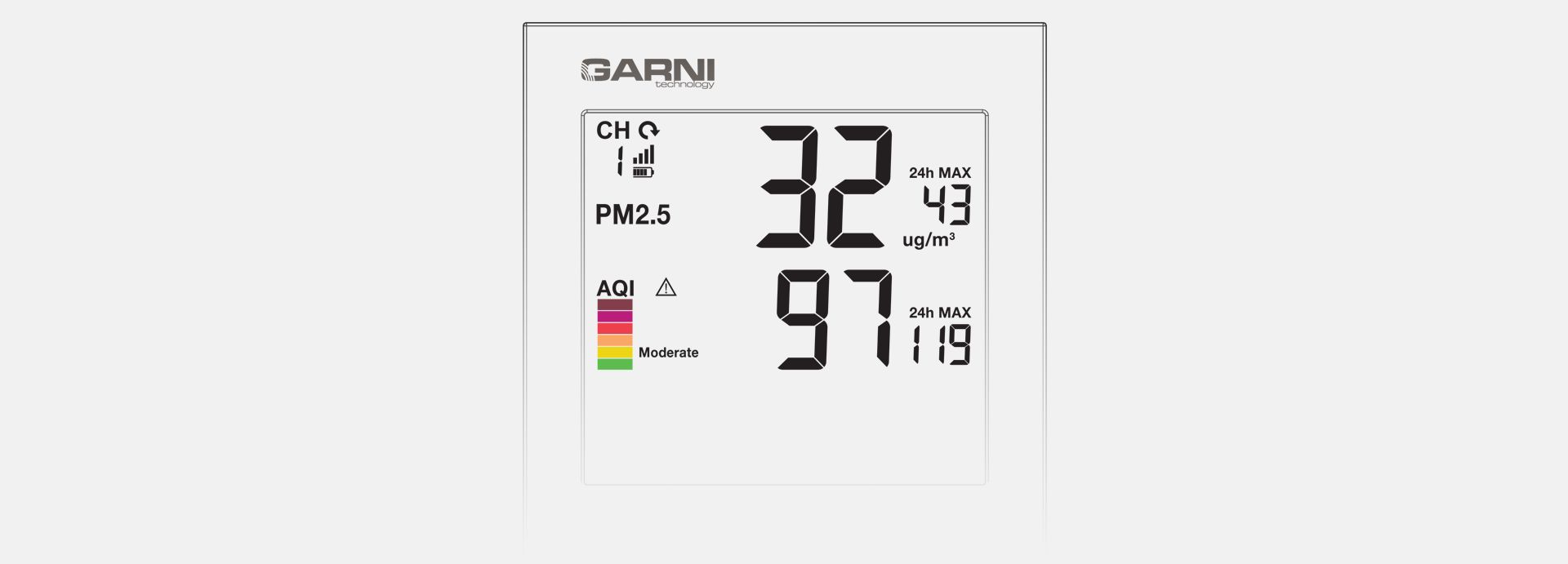

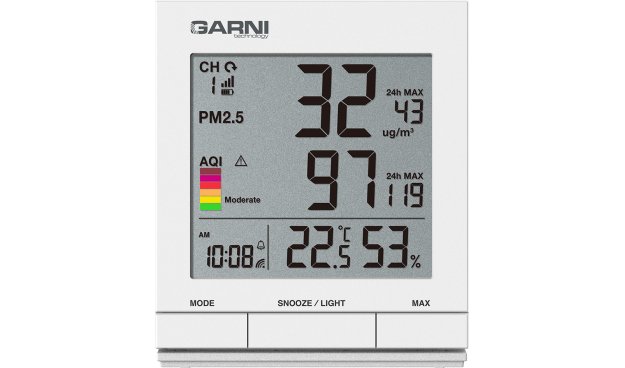

The easy-to-read display shows all measured values clearly.
Measurement of PM2.5, PM10 and display of AQI (air quality index)
Up to 4 wireless particulate matter sensors can be connected.
Wireless indoor air quality sensor for measuring PM2.5 and PM10 particulate matters, designed for GARNI 204 OneCare air quality monitor.
| Specification of sensors for measuring air quality | SENSIRION, SPS series, laser |
|---|---|
| Particle measurement range (PM) / tolerance | 1 to 1000 ug / m3 ± 10 ug / m3 for measurements 0 to 100 ug / m3 ± 10% for measuring 100 to 1000 ug / m3 |
| Particle resolution (PM) | 1 ug / m3 |
| Particle measurement method (PM) | laser |
| Particulate matter (PM) measurement update interval | 60 s |
| Air quality indication | AQI (Air Quality Index) and AQI |
| Indoor temperature measurement range / tolerance | -40 ° C to + 70 ° C (-40 ° C to -0.1 ° C ± 2 ° C, 0 ° C to + 40 ° C ± 1 ° C, + 41 ° C to + 70 ° C ± 2 |
| Resolution of internal temperature | 0.1 ° C |
| Internal rel. humidity measurement range / tolerance | 1% to 99% (1% to 40% ± 8%, 41% to 70% ± 5%, 71% to 99% ± 8%) |
| Resolution of internal relative humidity | 1% |
| Wireless sensor | Yes |
| Transmission frequency of wireless sensors | 868 MHz |
| Data transmission interval | 60 s when powered by USB adapter when powered by batteries, the sensor automatically measures PM2.5 and PM10 concentrations every 10 minutes by default. |
| Signal range | up to 100 m in open space |
| Number of Channels | 4 |
| Memory to MAX and MIN measured values | memory to the maximum value of PM2.5, PM10 and AQI since the last memory clear, for the last hour and the last 24 hours |
| Time | yes, controlled by DCF-77 signal |
| Date format | 12/24 hours |
| Alarm | Yes |
| Snooze | yes, after 5 minutes |
| Dimensions of the main unit display | 69 x 64 mm |
| Digit size - main unit | time 6.5 mm, temperature, relative humidity 12 mm, actual value PM2.5, PM10 17 mm, maximum value 7 mm, actual value AQI 17 mm, maximum value 7 mm |
| Main Unit Display Illumination | yes, short-term for 9 s, color orange |
| Wireless sensor display | Yes |
| Dimensions of the wireless sensor display | 37 x 21 mm |
| Digit size - wireless sensor | 10 mm |
| Power supply | main unit 2 pcs 1.5V AA batteries (pencil, not included) wireless sensor 3 pcs 1.2V NiMH rechargeable AA batteries (pencil, included) USB adapter (USB cable with a length of 120 cm is included in the package, the adapter is not a part of the package) |
| Overall dimensions | main unit 90 x 103.5 x 34.5 mm wireless sensor 82 x 120.5 x 41 mm |
| Weight | main unit 153 g (without batteries) wireless sensor 145 g (without batteries) |
| Color | main unit white wireless sensor white |
| Option to stand / hang up the sensor | main unit yes / yes wireless sensor yes / yes |
