GARNI 3055 Arcus

price: 10985 CZK

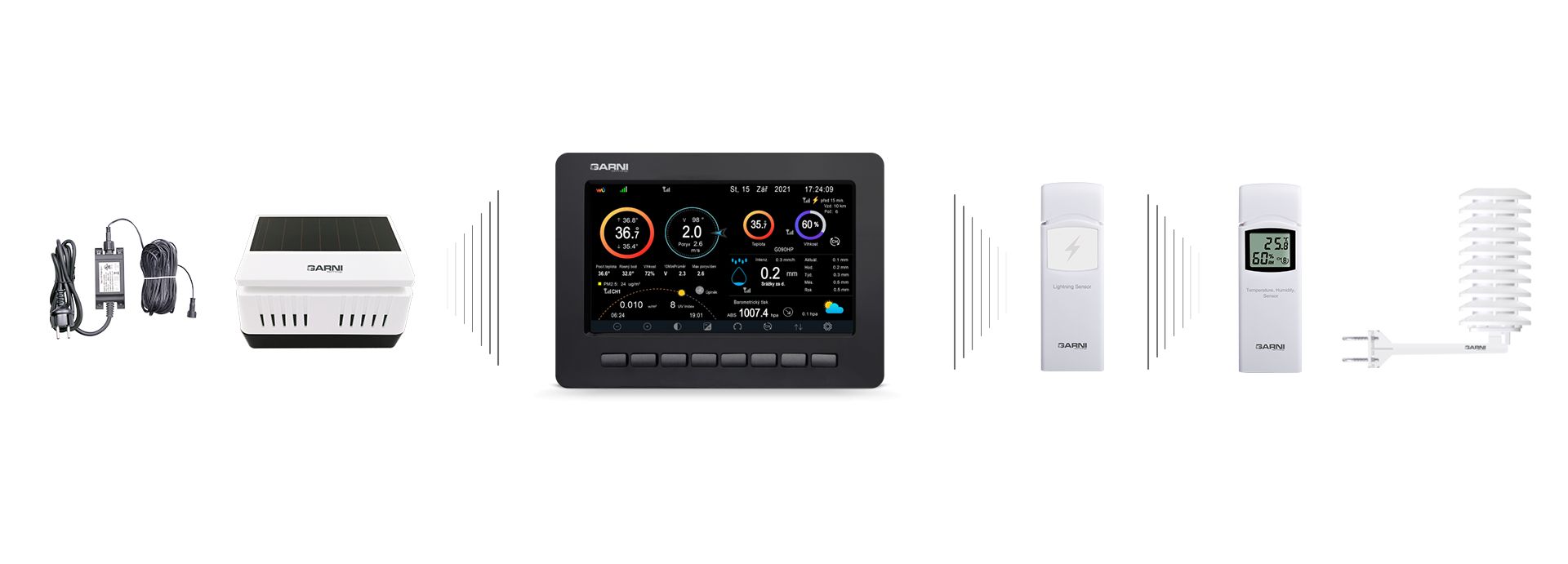

Weather station with Wi-Fi, color TFT display, with user interface in Czech (English, German), integrated 6-in-1 wireless sensor with ultrasonic anemometer, rain gauge and internal wireless sensor.

Key features:

  • Supports up to 8 wireless sensors
  • Measured values are displayed in the graph
  • Data upload to Weather Underground
  • Time and date are adjusted from the Internet
  • UV radiation measurement
  • 6 in 1 wireless sensor included
  • temperature and relative humidity measurement

BUY

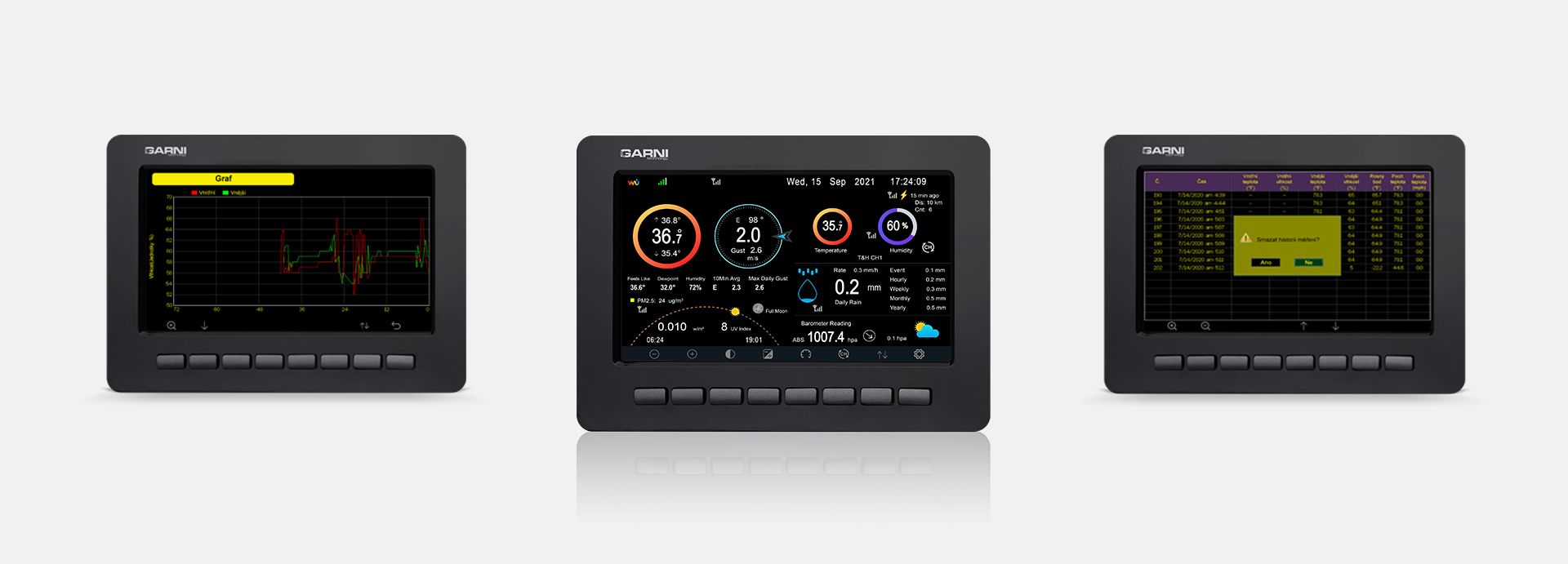

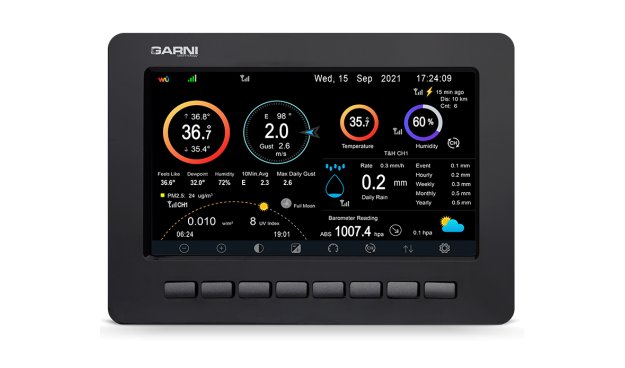

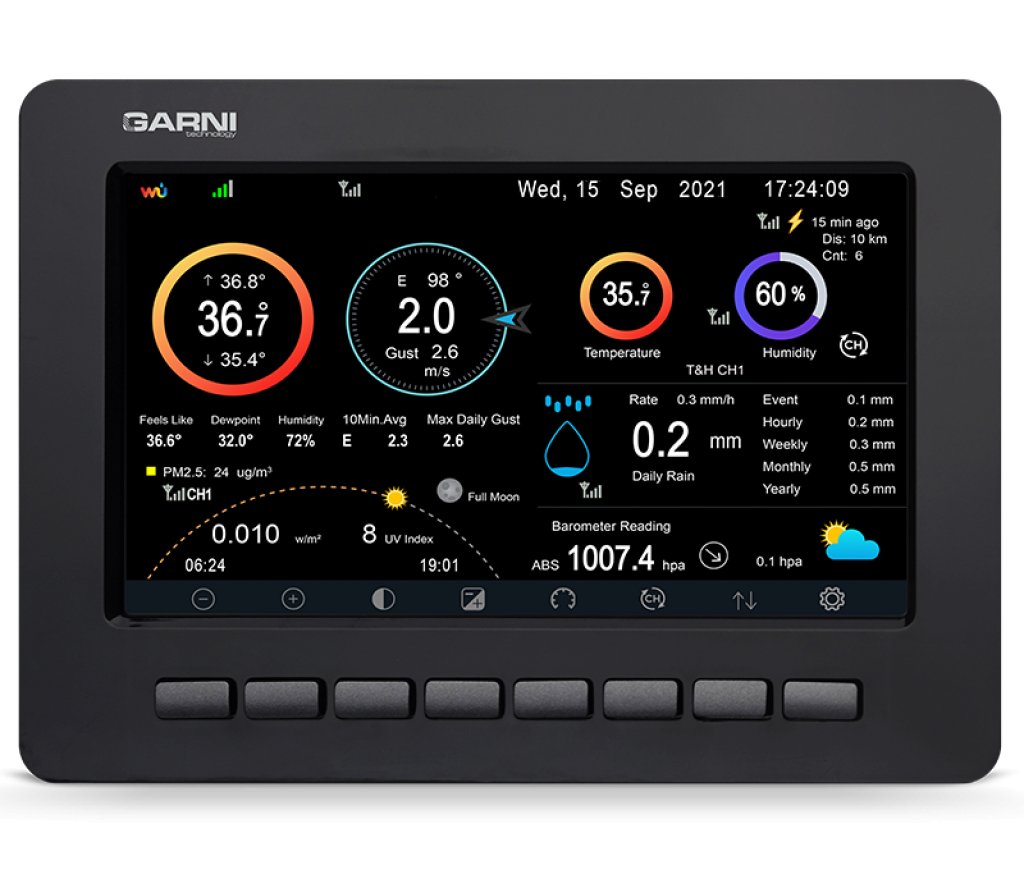

Large clear TFT display

With many options for displaying measured data. The menu is localized in English, German and Czech.

Large clear TFT display GARNI 3055 Arcus

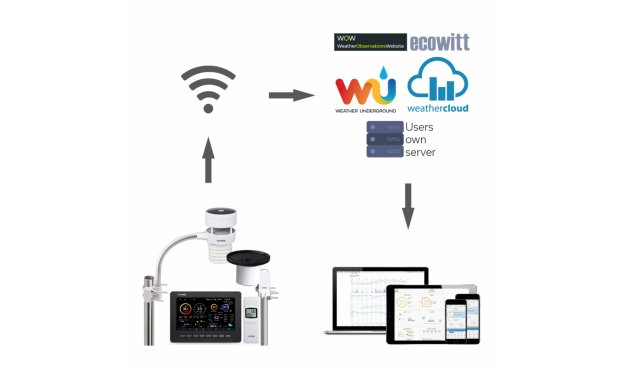

Access to data online

Transfer of measured data to the Weather Underground, Weathercloud, WeatherObservationWebsite and Ecowitt servers, or to the user's own server.

Access to data online GARNI 3055 Arcus

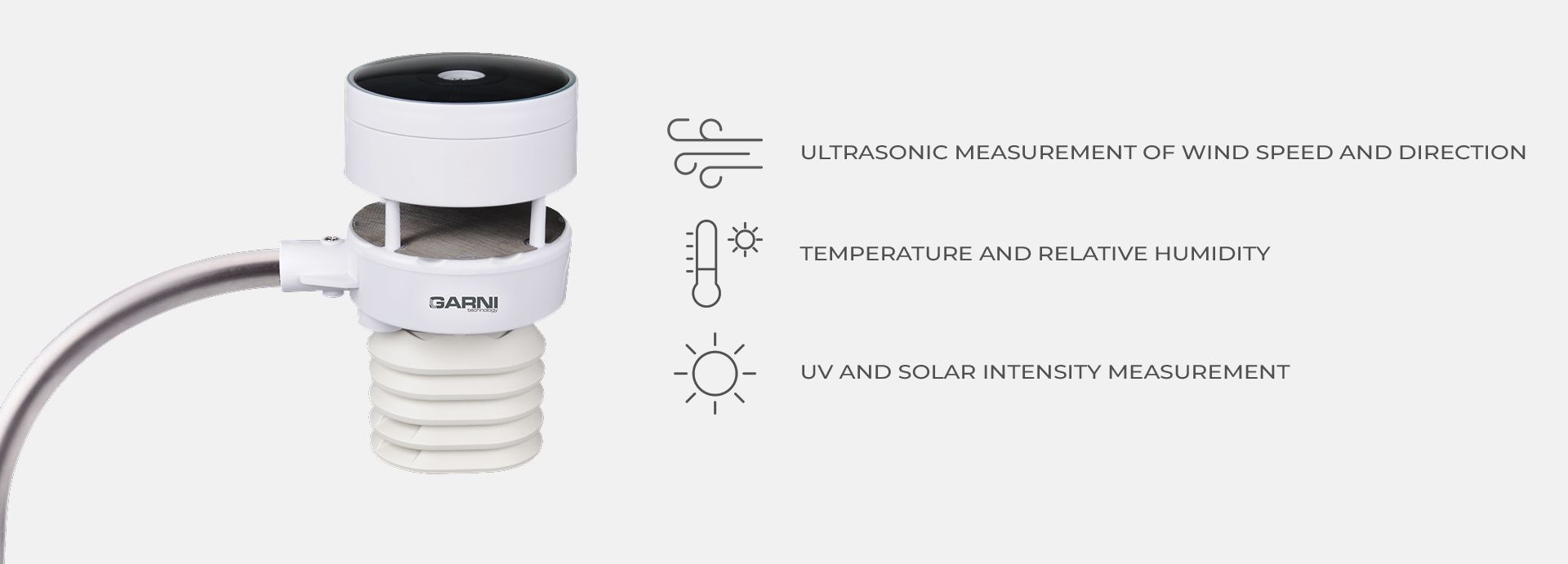

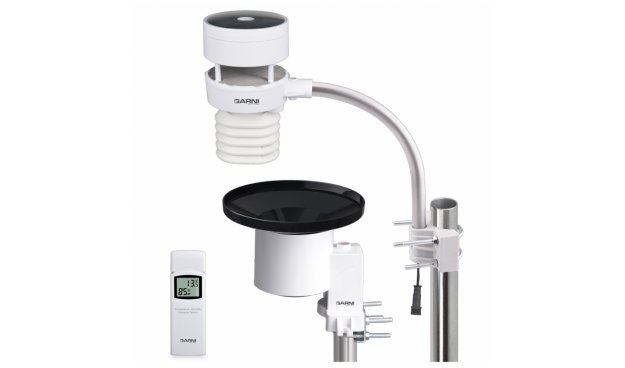

Ultrasonic wind speed and direction measurement

Sensor with ultrasonic measurement of wind speed and direction, temperature, relative humidity, UV and solar radiation intensity.

Ultrasonic wind speed and direction measurement GARNI 3055 Arcus

Wide selection of compatible accessories

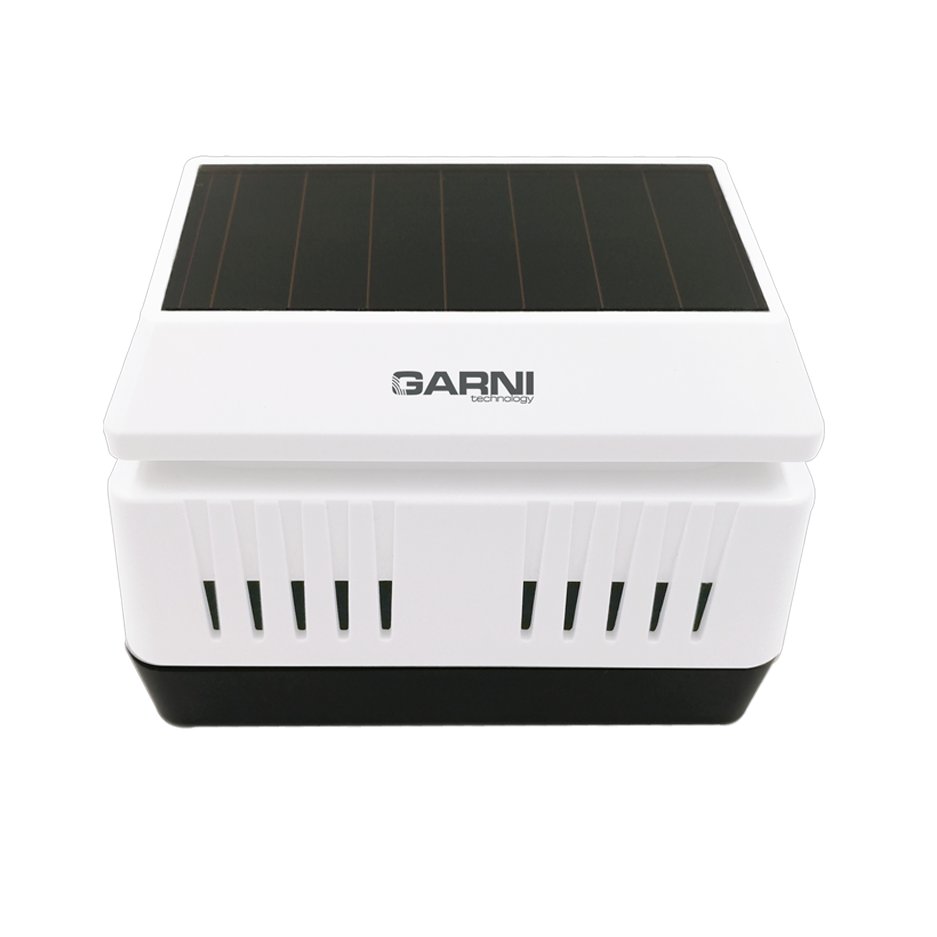

Possibility to connect a sensor to detect lightning, air quality and more.

Wide selection of compatible accessories GARNI 3055 Arcus
Indoor temperature measurement range / tolerance -40 ° C to + 60 ° C
(+55 to + 60 ° C ± 0.5 ° C, +10 to + 55 ° C 0.4 ° C, -20 to + 10 ° C ± 1.3 ° C, -40 to -20 ° C ± 1.9 ° C)
(SENSIRION sensor)
Resolution of internal temperature 0.1C
External temperature measurement range / tolerance -40 ° C to + 60 ° C
(+55 to + 60 ° C ± 0.5 ° C, +10 to + 55 ° C 0.4 ° C, -20 to + 10 ° C ± 1.3 ° C, -40 to -20 ° C ± 1.9 ° C)
(SENSIRION sensor)
Resolution of external temperature 0.1 ° C
Internal rel. humidity measurement range / tolerance 1% to 99%
(1 to 20% ± 6.5%, 21 to 80% ± 3.5%; 81 to 99% ± 6.5%) (SENSIRION sensor)
Resolution of internal relative humidity 1%
External rel. humidity measurement range / tolerance 1% to 99%
(1 to 20% ± 6.5%, 21 to 80% ± 3.5%; 81 to 99% ± 6.5%) (SENSIRION sensor)
Resolution of external relative humidity 1%
Bar. pressure measurement range / tolerance 300 to 1100 hPa (relative pressure setting 300 to 1100 hPa)
(700 to 1100 hPa ± 5 hPa) / (300 to 700 hPa ± 8 hPa)
Resolution of barometric pressure measurement 0.1hPa / 0.01inHg / 0.1mmHg
Wind speed measurement range / tolerance 0 to 40 m / s;
<5 mps: ± 0.5 mps;
Resolution of wind speed 0.1 m / s, 0.1 km / h, 0.1 mph, 0.1 knot (s) (does not apply to Beaufort scale)
Wind direction measurement Yes
Resolution of wind direction 16 positions or 360 °
Measuring rainfall yes, 0 to 9999 mm (0 to 393.66 in)
Resolution of rainfall 0.1 mm
Rainfall needed to flip the rocker 0.254mm (3 decimal places in inches)
UV radiation measurement range / tolerance 1 to 15, calibration possible
Illumination intensity measurement range / tolerance 0 to 200 Klux
Resolution of light intensity 1
Lightning detection sensor optional accessories (wireless sensor GARNI 094L)
Air / air quality measurement optional accessories (outdoor sensor PM2.5 for measuring air quality GARNI 080Q)
Sunrise and Sunset Time yes, after entering the time zone and latitude and longitude
Graph -yes, barometric pressure (absolute and relative), indoor and outdoor temperature, dew point and sensory temperature, indoor and outdoor relative humidity, wind speed and wind gust, wind direction, UV index, solar radiation, hourly and daily total precipitation
-option of displaying graphs of measured values ​​for the last 12, 24, 48, 72 hours.
Moon phase Yes
Principle of weather forecasts based on bar changes.
Altitude setting No
Absolute / relative barometric pressure display Yes Yes
Number of weather forecast icons 7 (sunny, partly cloudy, cloudy, rain, rain / storm, snow, thunderstorm)
Signal range 300 m in open space - integrated wireless sensor GARNI 095HA
100 m in open space - wireless sensor for measuring indoor temperature and relative humidity GARNI 090HP
100 m in open space - rain gauge GARNI 097R
Data transmission interval integrated sensor - wind speed and direction, UV index, solar radiation intensity 12 seconds, temperature, relative humidity and precipitation 24 seconds,
wireless sensor for measuring temperature and relative humidity 60 s
Transmission frequency of wireless sensors 868 MHz
Number of Channels 8 channels - temperature and relative humidity sensor GARNI 092H (optional accessory)
4 channels - Outdoor air quality sensor (PM2.5; particulate matter) GARNI 080Q (optional accessory)
1 channel - GARNI 094L flash detection sensor (optional accessory)
Alarm of upper and lower temperature limits Yes
Alarm of upper and lower limit of relative humidity Yes
Other alarms upper and lower sensing temperature alarm (Feel Like)
Dew Point upper and lower alarm
upper and lower absolute barometric pressure alarm
upper and lower relative barometric pressure alarm
wind speed upper limit alarm
wind gust upper alarm
alarm of the upper limit of the hourly total precipitation
alarm of the upper limit of the daily total precipitation
indication of reaching the upper or lower limit by a sound signal and an icon on the display
Date yes, controlled after internet connection, or manually
Time yes, controlled after internet connection, or manually
Date format 12/24 hours
Alarm Yes
Time zone yes, from -12 to +13 hours
Option to stand / hang up the sensor main unit yes / yes
integrated wireless sensor GARNI 095HA no / no - possibility of mounting on a mast
rain gauge GARNI 097R yes / no - placement on a flat surface or on a pole

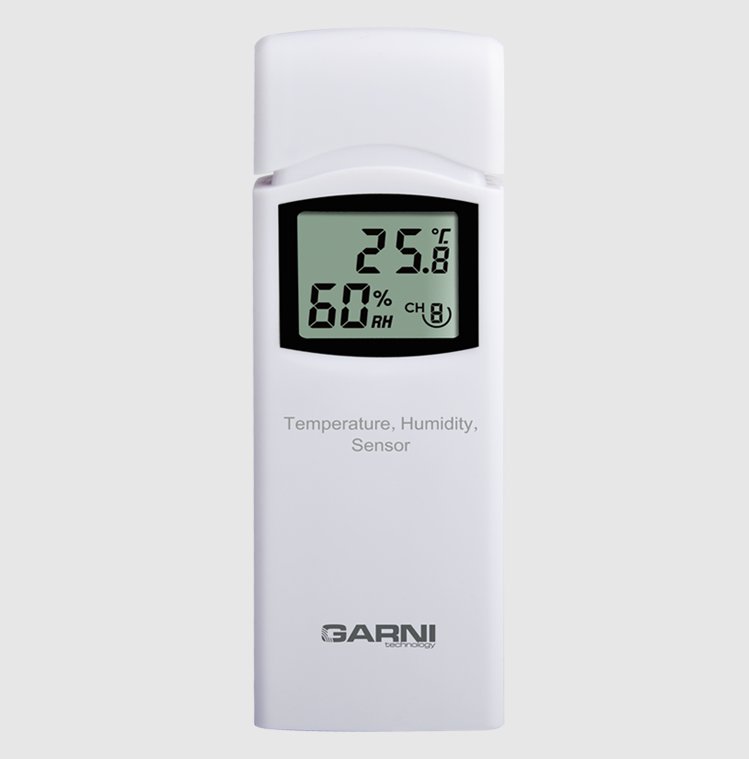

indoor wireless sensor for temperature and relative humidity measurement GARNI 090HP yes / yes
Weight main unit 297 g (without mains adapter)
integrated wireless sensor GARNI 095HA 366.5 g (without batteries)
rain gauge GARNI 097R 366 g (without battery)
indoor wireless temperature and relative humidity sensor GARNI 090HP 49 g (without batteries)
Color main unit black
integrated wireless sensor GARNI 095HA white
rain gauge GARNI 097R white, funnel black
indoor wireless temperature and relative temperature sensor GARNI 090HP white humidity
Power supply main unit mains adapter 100-240V, 50-60Hz / 5V, 1.0A, 5.0W DC (included)

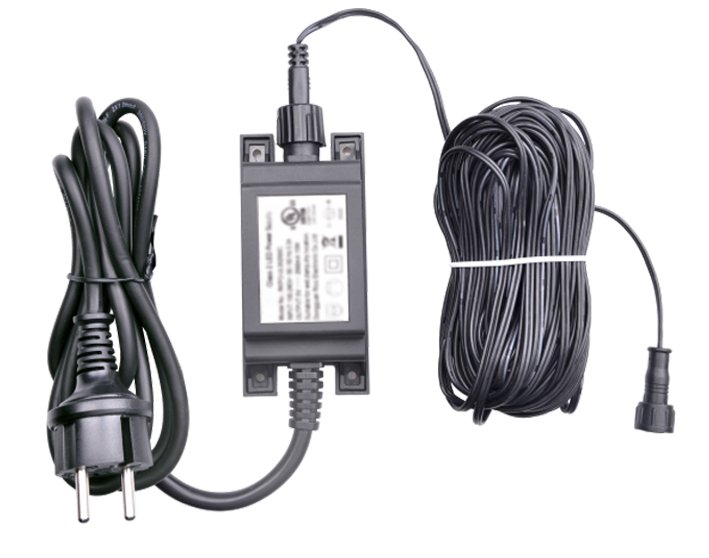

integrated wireless sensor GARNI 095HA main power supply built-in solar panel: 6.5V / 4 mA, backup power supply 2 x AA 1.5V lithium batteries (not included), for anemometer heating mains adapter GARNI AD1 (optional accessory)
rain gauge GARNI 097R 1 x AA 1.5V lithium pencil battery (not included)
indoor wireless sensor for measuring temperature and relative humidity GARNI 090HP 2 x AA 1.5V alkaline pencil batteries (not included)
Overall dimensions main unit 194 x 137.9 x 19 mm
integrated wireless sensor GARNI 095HA 116 x 90 x 90 mm
rain gauge GARNI 097R 181.1 x 159 x 181.1 mm
indoor wireless sensor for measuring temperature and relative humidity GARNI 090HP 42 x 122 x 18 mm
Wi-Fi standard 802.11 b / g / n, supported router security: WPA / WPA2, OPEN, WEP (WEP only supports hexadecimal passwords)
Wi-Fi frequency 2.4 GHz
Wireless sensor display Yes
Supported router security WPA / WPA2, OPEN, WEP (WEP only supports hexadecimal passwords)
Dimensions of the wireless sensor display 26 x 22 mm
Digit size - wireless sensor temperature, relative humidity, barometric pressure 8 mm
Dimensions of the main unit display 154 x 86 mm
Main Unit Display Illumination yes, option to select light or dark background, option to set the display lighting on and off time, option to adjust the brightness, option to automatically adjust the brightness according to the light intensity measured by the solar radiation sensor located on the integrated 6-in-1 wireless sensor
Data sending server Weather Underground, Weathercloud, WeatherObservationsWebsite, Ecowitt Weather, own server
Memory card support yes, Micro SD (SDSC, SDHC) maximum 32 GB, (not included), for backup of measured values
Application GARNI technology, Weather Underground
Supported systems Android, iOS
Heat index outdoor feeling temperature (Feels like) - up to 18 ° C it is Wind Chill, from 18.1 ° C to 25.9 ° C it is the current outdoor temperature and from 26 ° C it is the temperature index
Snooze No
Stormy warning yes, weather forecast icon, lightning warning icon
Display of the dew point value yes, outdoor
Display of the Wind Chill value Feels like - up to 18 ° C it is Wind Chill, from 18.1 ° C to 25.9 ° C it is the current outside temperature and from 26 ° C it is the temperature index
Internal memory yes, 16 MB
Memory to MAX and MIN measured values memory for maximum and minimum values: indoor and outdoor temperatures and relative humidity, sensory temperature, dew point, relative and absolute barometric pressure
memory for maximum values: average value of wind speed and wind gust, UV index, solar intensity, hourly, daily, weekly, monthly and annual total precipitation
possibility to switch on or off automatic deleting of memory of max and min values ​​at 0:00 o'clock
Display of the table of measured values yes, page selection, page scrolling
Digit size - main unit The TFT display can display any characters and may vary depending on the currently displayed data.
