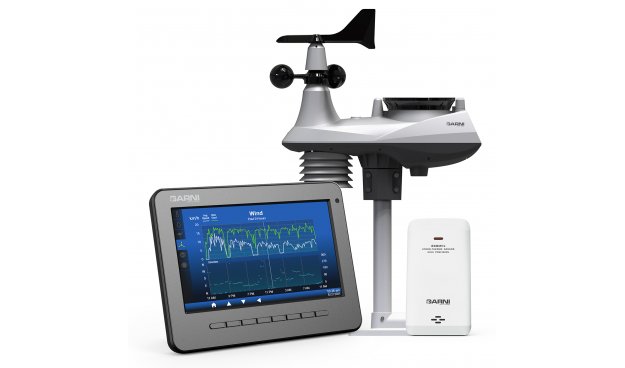

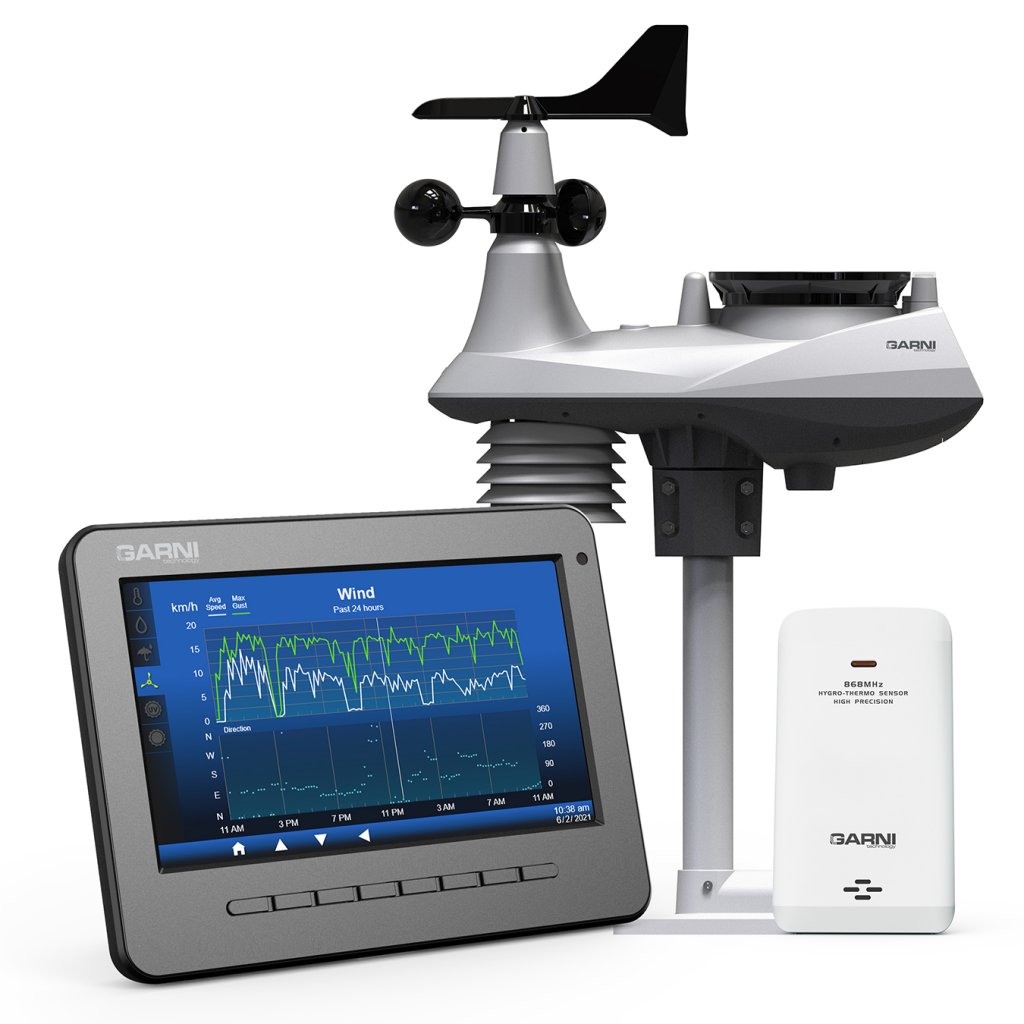

GARNI 3015 Arcus

price: 9989 CZK

Semi-professional Wi-Fi weather station with colour TFT HD display, with user interface in English (Czech , German, Dutch, Spanish, French and Italian), integrated 7-in-1 wireless sensor and additional wireless sensor GARNI 055H. The product is using precise and high-quality sensors from the Swiss brand SENSIRION.

Key features:

  • 6 animated weather forecast icons
  • Time and date are adjusted from the Internet
  • UV radiation measurement
  • waterproof cover
  • wireless sensor signal range up to 150 m in open area
  • 7 channels
  • 7 in 1 wireless sensor included

BUY

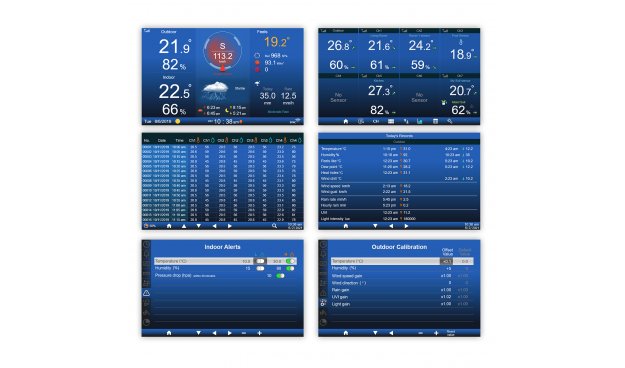

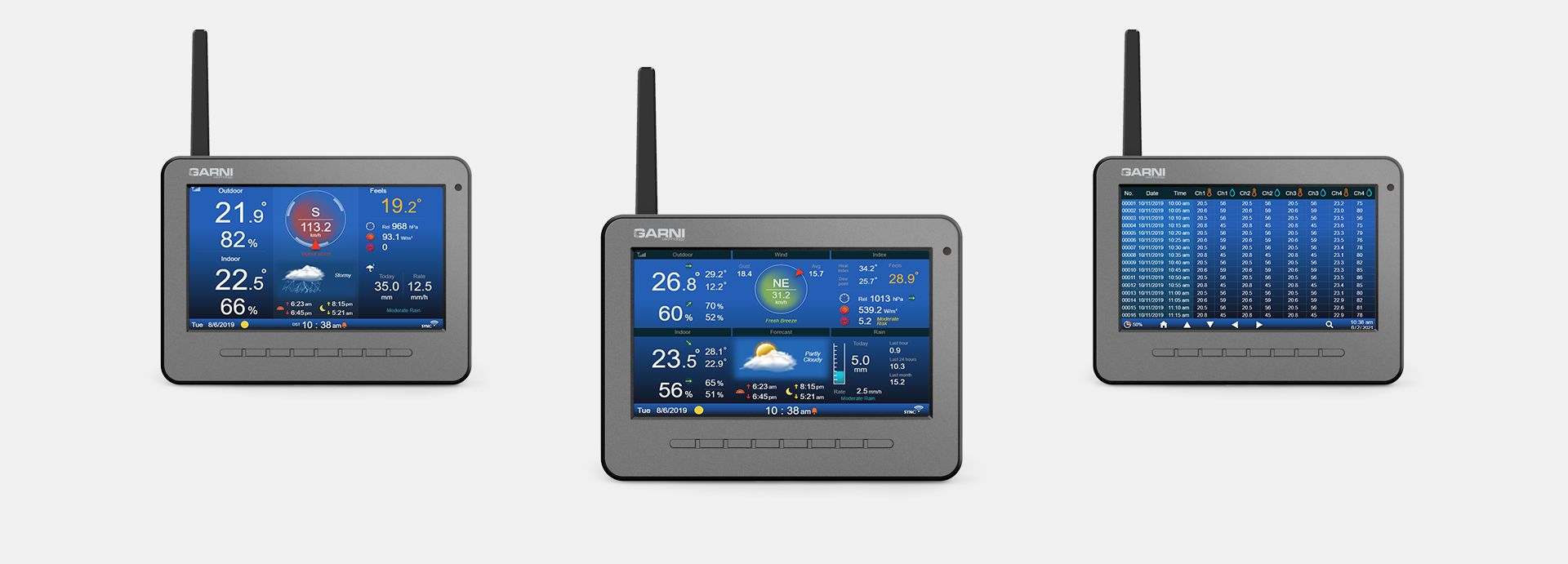

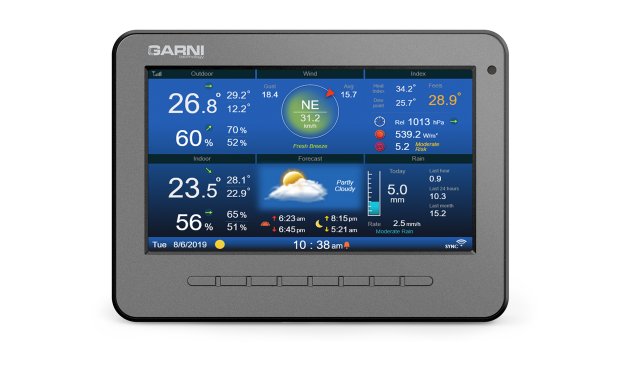

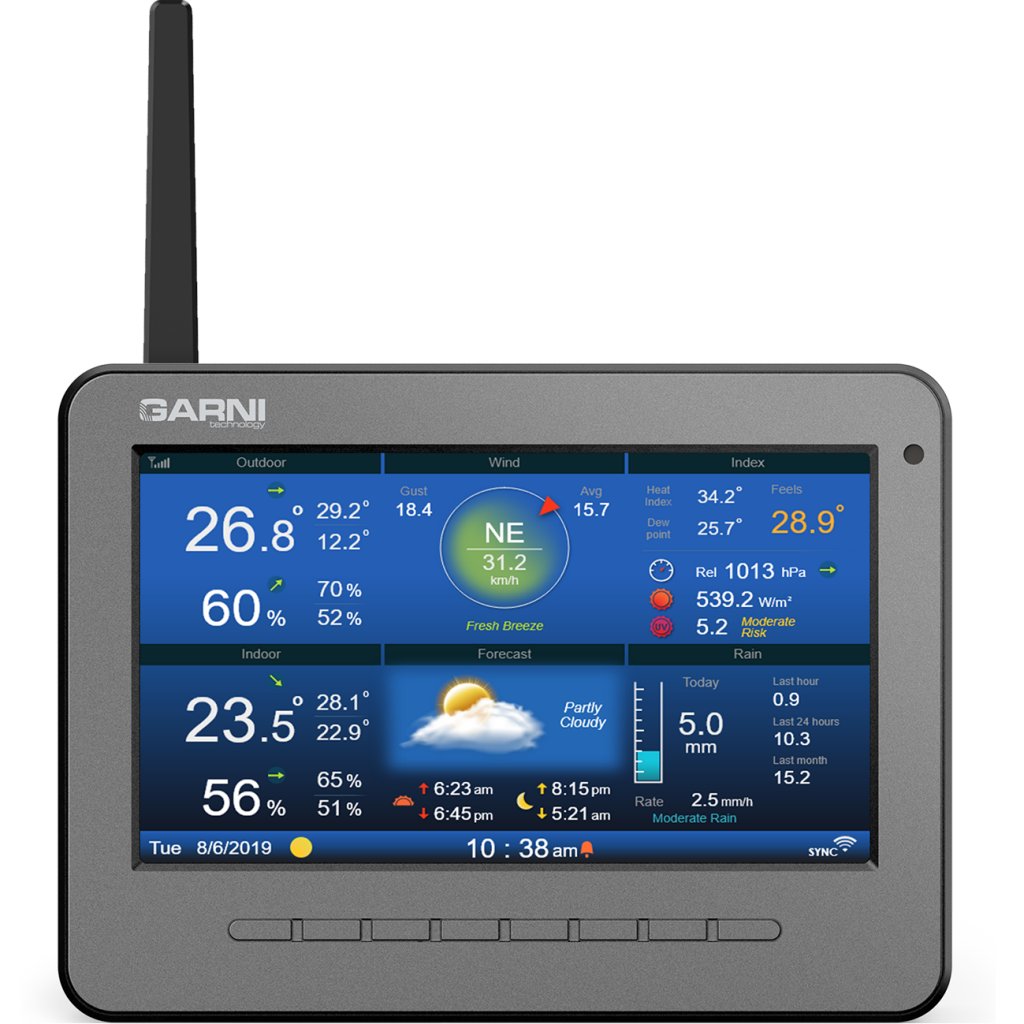

Large clear TFT display

With many options for displaying measured data. The menu is localized in English, German, Czech, French, Italian, Spanish and Dutch

Large clear TFT display GARNI 3015 Arcus

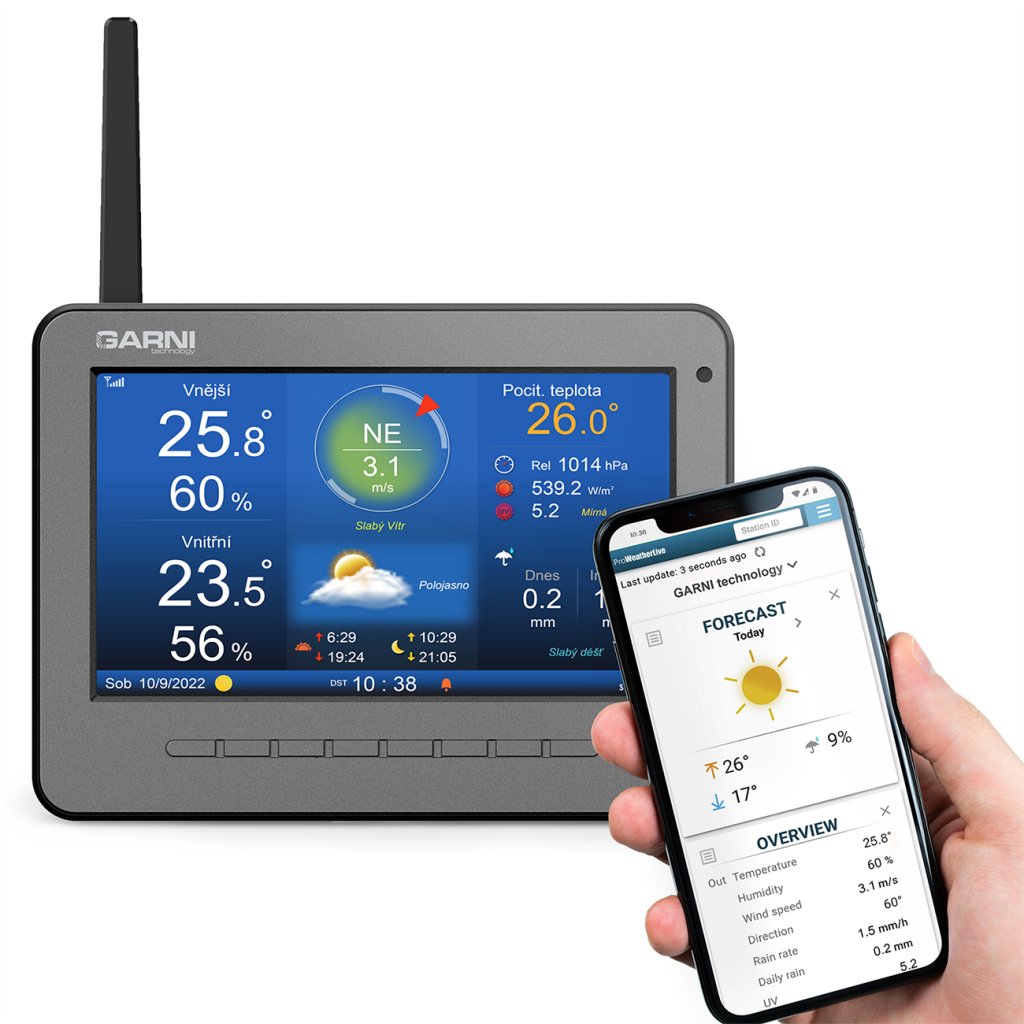

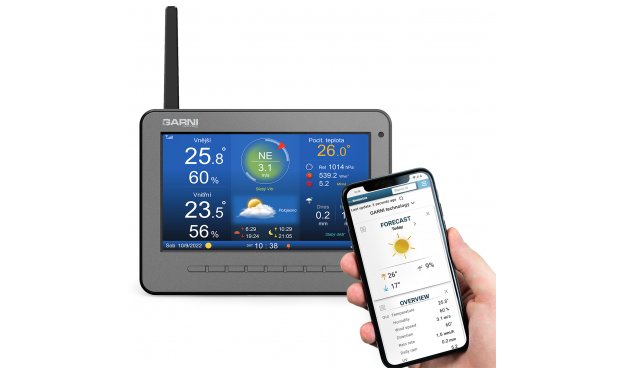

Access to data online

Transfer of measured data to the ProWeatherLive, Weather Underground and Weathercloud servers, or to the user's own server.

Access to data online GARNI 3015 Arcus

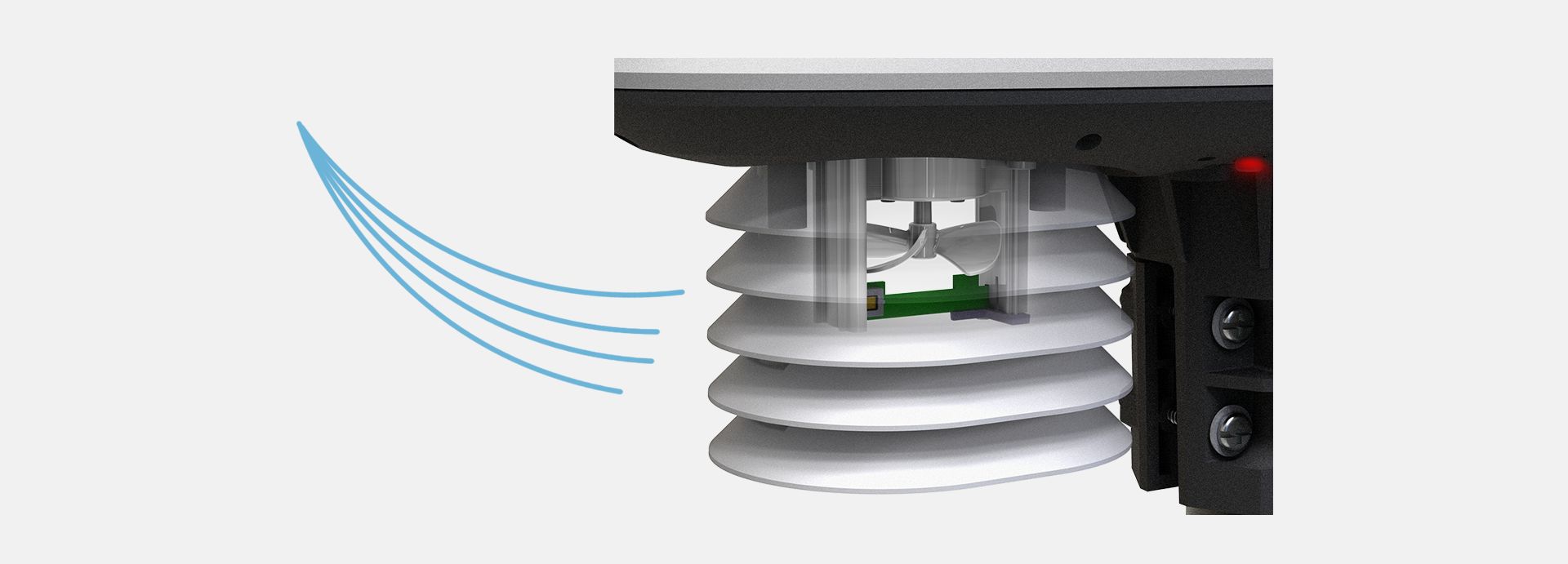

Ideal measuring conditions

Integrated wireless sensor 7-in-1 is equipped with a built-in fan inside the radiation shield to ensure accurate measurements.

Ideal measuring conditions GARNI 3015 Arcus

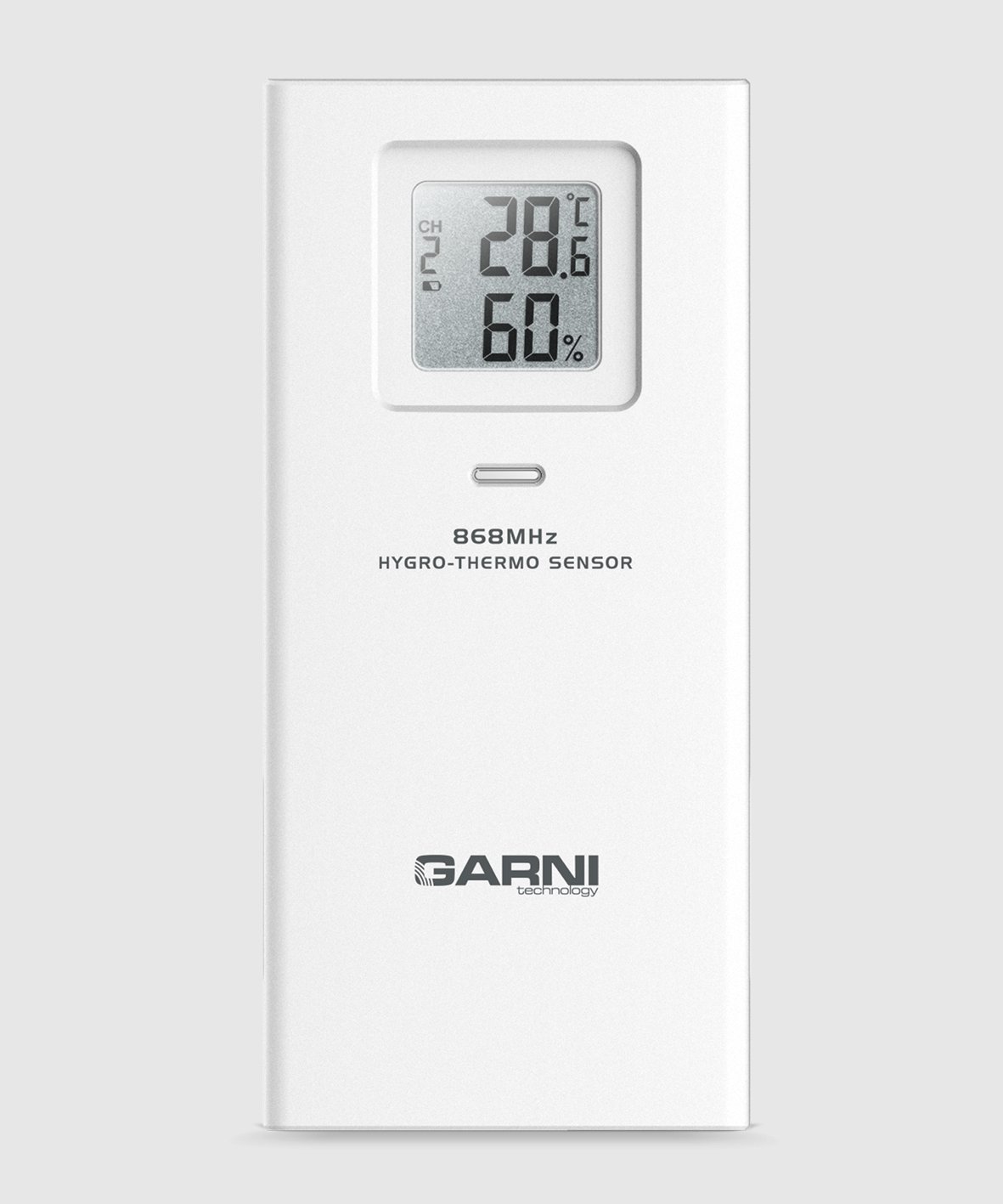

Option to connect additional wireless sensors

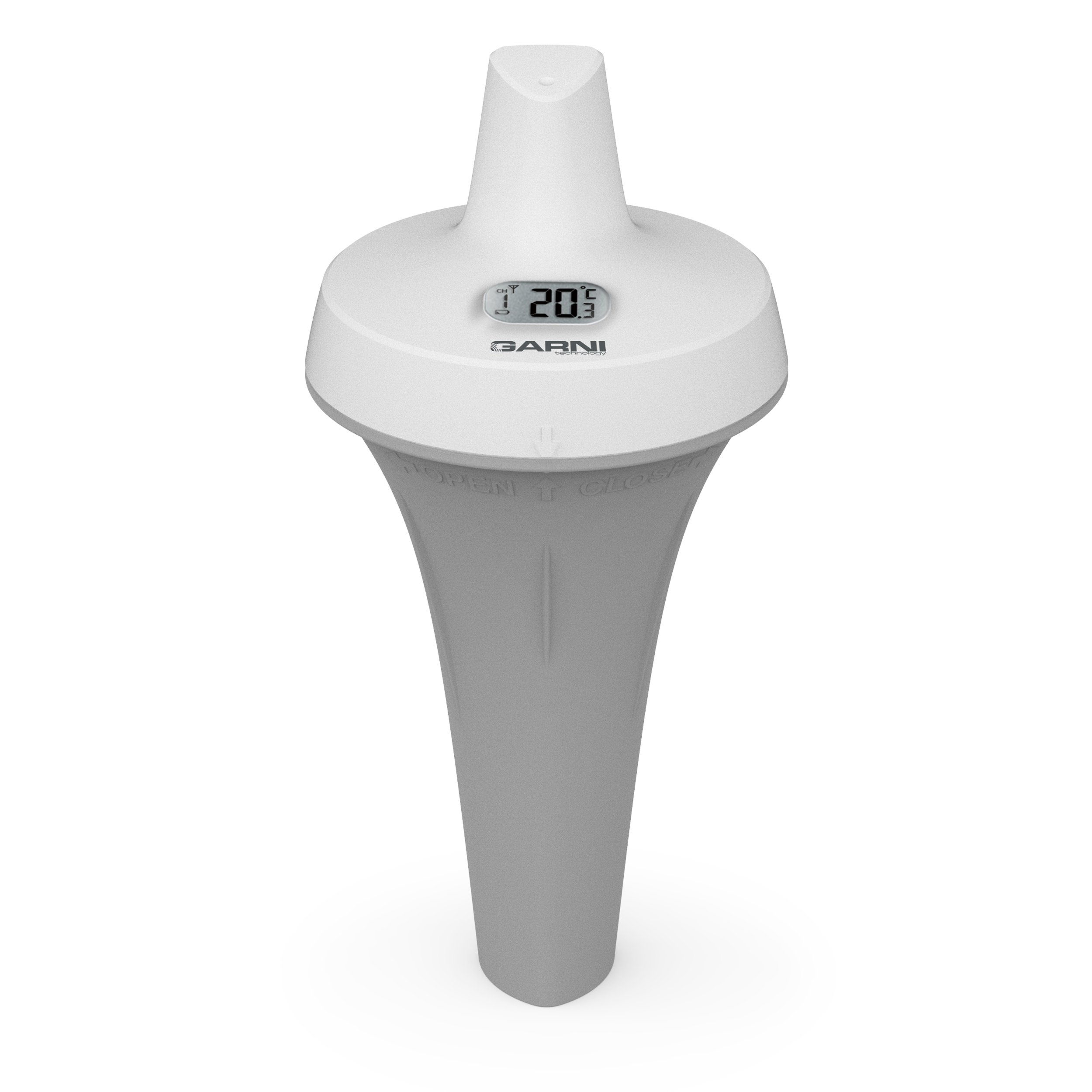

Up to 7 wireless sensors can be connected to measure temperature, relative humidity and/or water temperature.

Option to connect additional wireless sensors GARNI 3015 Arcus

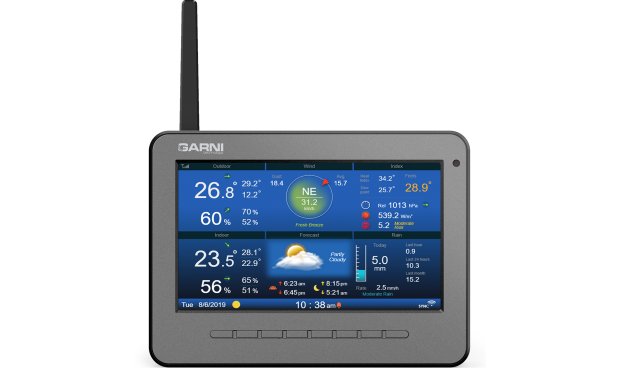

Foldable antenna

Foldable antenna to ensure data transmission over the maximum possible distance.

Foldable antenna GARNI 3015 Arcus

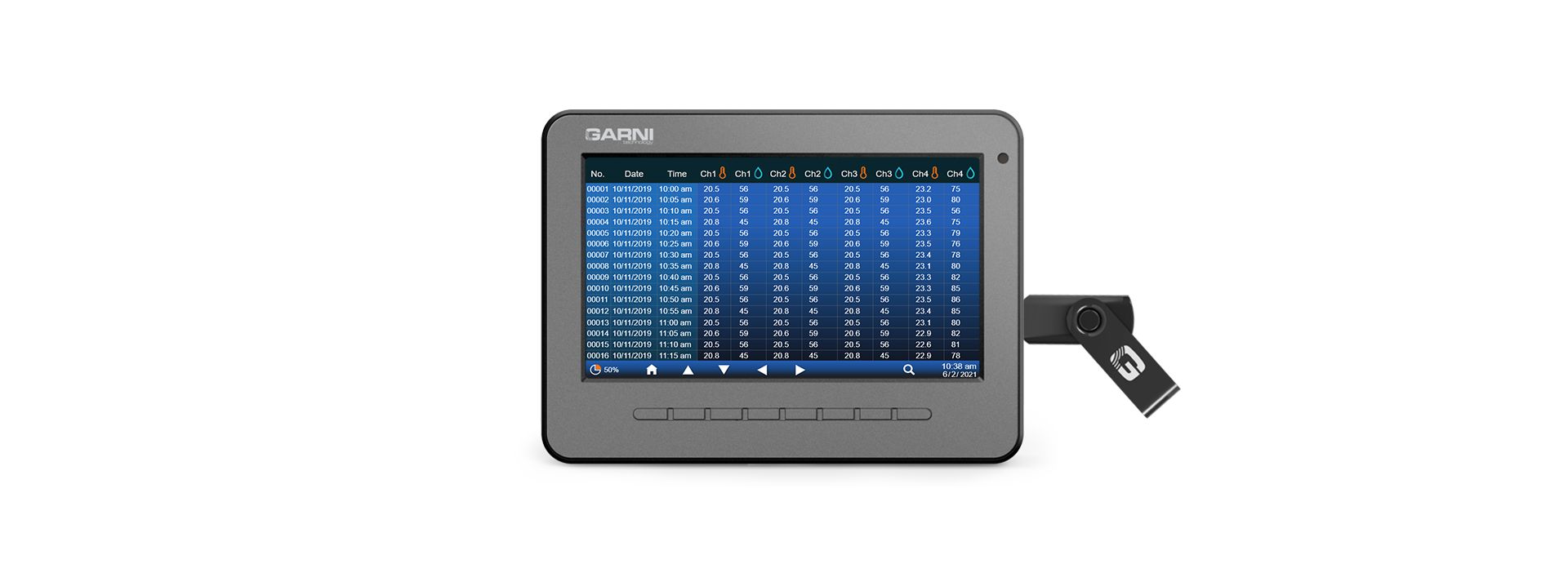

Built-in USB port

The built-in USB port allows you to connect a USB flash drive to automatically save data every 5, 10, or 30 minutes in .csv format.

Built-in USB port GARNI 3015 Arcus
Indoor temperature measurement range / tolerance -40 ° C to + 60 ° C
(-40 ° C to + 5 ° C ± 2 ° C, + 5.1 ° C to + 60 ° C ± 1 ° C)
(SENSIRION sensor)
Resolution of internal temperature 0.1 ° C
External temperature measurement range / tolerance Integrated sensor - 40 ° C to + 60 ° C ± 0.4 ° C (SENSIRION sensor)

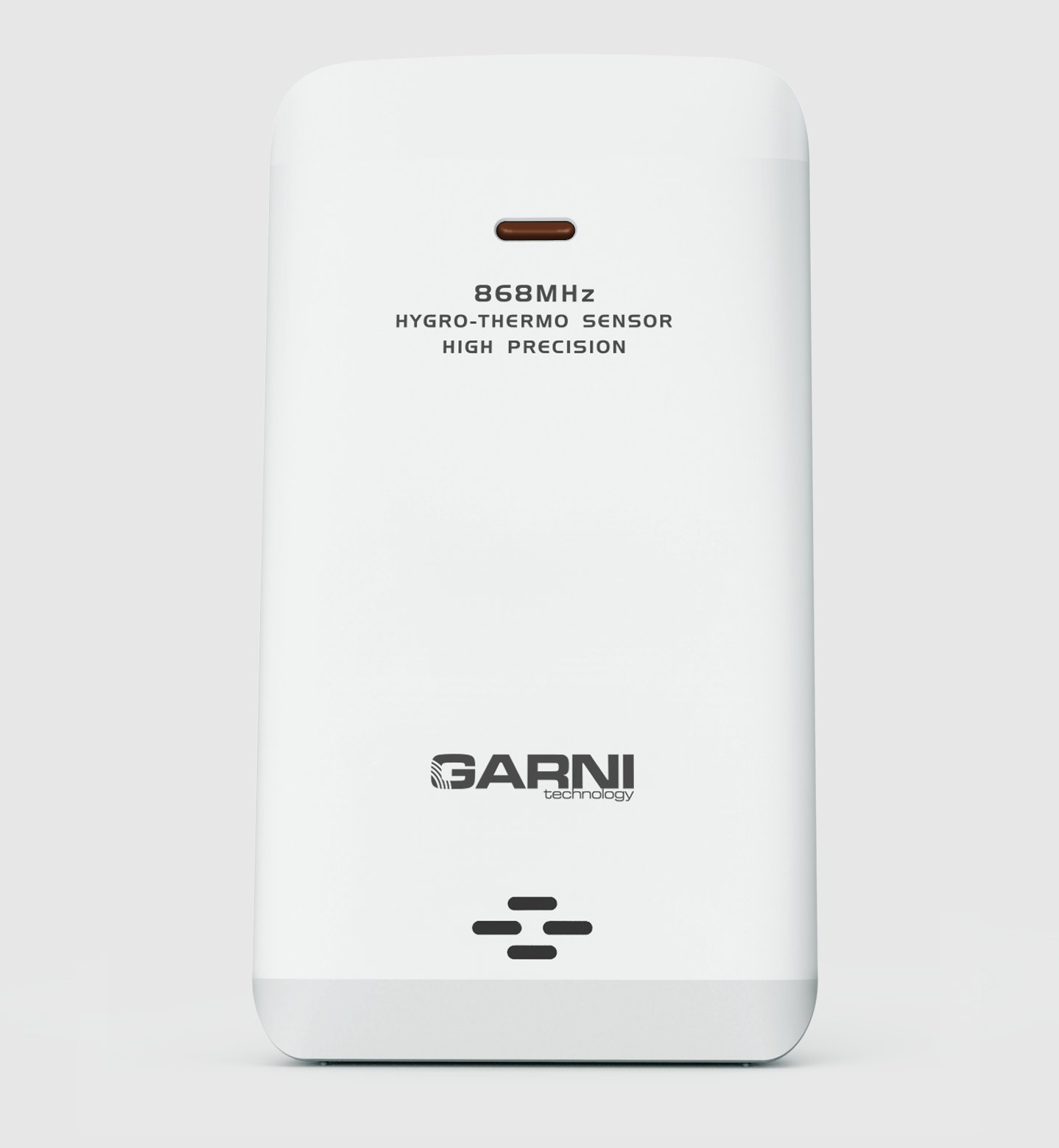

GARNI 055H sensor - 40 ° C to + 60 ° C ± 0.4 ° C (SENSIRION sensor)
Resolution of external temperature 0.1 ° C
Internal rel. humidity measurement range / tolerance 1% to 99%
(1 to 20% ± 6.5%, 21 to 80% RH ± 3.5%; 81 to 99% ± 6.5%) (SENSIRION sensor)
Resolution of internal relative humidity 1%
External rel. humidity measurement range / tolerance integrated sensor 1% to 99% (1 to 90% ± 2.5%, 91 to 99% ± 3.5%) (SENSIRION sensor)
GARNI 055H sensor 1% to 99% (1 to 90% ± 2.5%, 91 to 99% ± 3.5%) (SENSIRION sensor)
Resolution of external relative humidity 1%
Bar. pressure measurement range / tolerance 540 to 1,100 hPa (relative pressure setting from 930 to 1,050 hPa)
(700 to 1100 hPa ± 5 hPa, 540 to 696 hPa ± 8 hPa)
Resolution of barometric pressure measurement 1 hPa, 0.01 inHg, 0.1 mmHg
Wind speed measurement range / tolerance 0 to 50 m / s;
<5 mps: ± 0.5 mps;
Resolution of wind speed 0.1 m / s, 0.1 km / h, 0.1 mph, 0.1 knots
Wind direction measurement Yes
Resolution of wind direction 16 positions or 360 °
Measuring rainfall Yes
Resolution of rainfall 0.1 mm
UV radiation measurement range / tolerance 1 to 16, calibration possible
Illumination intensity measurement range / tolerance 0 to 200 Klux
Resolution of light intensity 0.01
Sunrise and Sunset Time yes, after entering the time zone and latitude and longitude
Graph yes, indoor and outdoor temperatures and relative humidity including additional sensors, barometric pressure, precipitation, average wind speed and gust, UV index, solar radiation intensity in the past 24 hours
Moon phase Yes
Principle of weather forecasts based on bar changes.
Altitude setting No
Absolute / relative barometric pressure display Yes Yes
Number of weather forecast icons 6 (sunny, partly cloudy, cloudy, rain, rain / storm, snow)
Signal range 150 m in open space - integrated wireless sensor
150 m in open space - wireless sensor for measuring temperature and relative humidity GARNI 055H
Data transmission interval integrated sensor - wind speed and direction, UV index, solar radiation intensity 12 seconds, temperature, relative humidity and precipitation 24 seconds,
wireless sensor GARNI 055H for measuring temperature and relative humidity 60 s
Transmission frequency of wireless sensors 868 MHz
Number of Channels 7
Memory to MAX and MIN measured values - memory for maximum and minimum values ​​since the last reset at midnight or from the beginning of the measurement with date and time of recording: indoor and outdoor temperatures and relative humidity (including additional sensors), sensory temperature, dew point, barometric pressure
- memory for maximum values ​​since the last reset at midnight or from the beginning of the measurement with date and time of recording: average value of wind speed and gust, UV index, temperature index, solar intensity and precipitation intensity in mm / h and hourly total in mm
- memory for the minimum WindChill value since the last reset at midnight or from the beginning of the measurement with the date and time of recording
Internal memory Yes, to store time and date in the main unit memory during a power failure.
Alarm of upper and lower temperature limits Yes
Alarm of upper and lower limit of relative humidity Yes
Other alarms barometric pressure drop alarm (adjustable from 1 to 10 hPa)
alarm of upper and lower sensory temperature limits, dew point
alarm upper limit of temperature index, wind speed, wind gust, precipitation intensity, UV index, solar radiation intensity
Wind Chill low limit alarm
indication of reaching the upper or lower limit by an audible signal and display
Display of the Wind Chill value yes, range -65 to + 18 ° C (at wind speed> 4.8km / h)
Date yes, controlled after internet connection, or manually
Time yes, controlled after internet connection, or manually
Alarm yes, possibility to wake up every day or on weekdays, Pre-alarm function - if the outdoor temperature drops below -3 ° C, the alarm will start 30 minutes earlier than the set wake-up time
Snooze No
Date format 12/24 hours
Time zone yes, from -12 to +13 hours
USB host No
Wi-Fi frequency 2.4 GHz
Data sending server Weather Underground, Weathercloud, ProWeatherLive, pocasi-meteo.cz, own server
Dimensions of the main unit display 154 x 86 mm, color TFT DH display, resolution 800 x 480 px ,, choice of dark and light display background,
Digit size - main unit varies according to current display, size in basic display: indoor and outdoor temperature 12 mm, indoor and outdoor relative humidity 10.5 mm, barometric pressure, UV index, solar intensity 3.5 mm, sensory temperature 9 mm, wind speed, precipitation
Main Unit Display Illumination permanent, the possibility of setting a dark or light background, brightness, contrast, lighting level, setting the night lighting mode automatically, or at a set time
Wireless sensor display No
Power supply main unit mains adapter 100 - 240V, 50 / 60Hz, 0,3A / 5V, 1A, 5W, backup battery 1 pc 3V type CR2032 (button, included)
integrated wireless sensor 3 pcs 1.5 V type AA (pencil, not included), solar panel power supply support
wireless sensor for measuring temperature and relative humidity 2 pcs 1.5 V type AA (pencil, not included)
Overall dimensions main unit 190 x 140 x 19.5 mm
integrated wireless sensor 370.5 x 334 x 144.5 mm
wireless sensor for measuring temperature and relative humidity 60 x 113 x 39.5 mm
Weight main unit 322 g (without batteries)
integrated wireless sensor 1078 g (without batteries)
wireless temperature and relative humidity sensor 84 g (without batteries)
Color main unit anthracite
integrated wireless sensor 7-in-1 light gray, rain gauge funnel, weather vane, pinwheel and underside except radiation shield black
wireless temperature and relative humidity sensor white
Option to stand / hang up the sensor main unit yes / yes
integrated wireless sensor no / no - possibility of mounting on a mast
wireless sensor for temperature and relative humidity measurement yes / yes
Rainfall needed to flip the rocker 0.254 mm (0.001 inches) ± 7%, or 1 shuttle overturn
Stormy warning yes flashing weather forecast icon
Heat index yes, outdoor feel temperature (Feels Like) -65 ° C to + 50 ° C, temperature index (Heat Index) from + 26 ° C to + 50 ° C
Display of the dew point value yes, outdoor, range -20 to + 80 ° C
Other functions - possibility to name wireless sensors
- the main unit allows storing all measured values ​​on a USB flash drive (with a maximum capacity of 16 GB) at intervals of 5, 10, or 30 minutes for possible further work with data
- calibration of temperature, relative humidity, barometric pressure, precipitation, wind speed and direction, UV index and solar radiation intensity
Display of the table of measured values yes, measured and calculated meteorological quantities
Moonrise and sunset time yes, after entering the time zone and latitude and longitude
Supported router security WPA / WPA2, OPEN, WEP (WEP only supports hexadecimal passwords)
Int. supporting HTML5 markup language: latest versions of Google Chrome, Safari, Microsoft Edge, Mozilla Firefox, Opera
Wi-Fi standard 802.11 b / g / n
Application GARNI technology, Weather Weather.
Supported systems Android, iOS (Weather Weather only Android)
