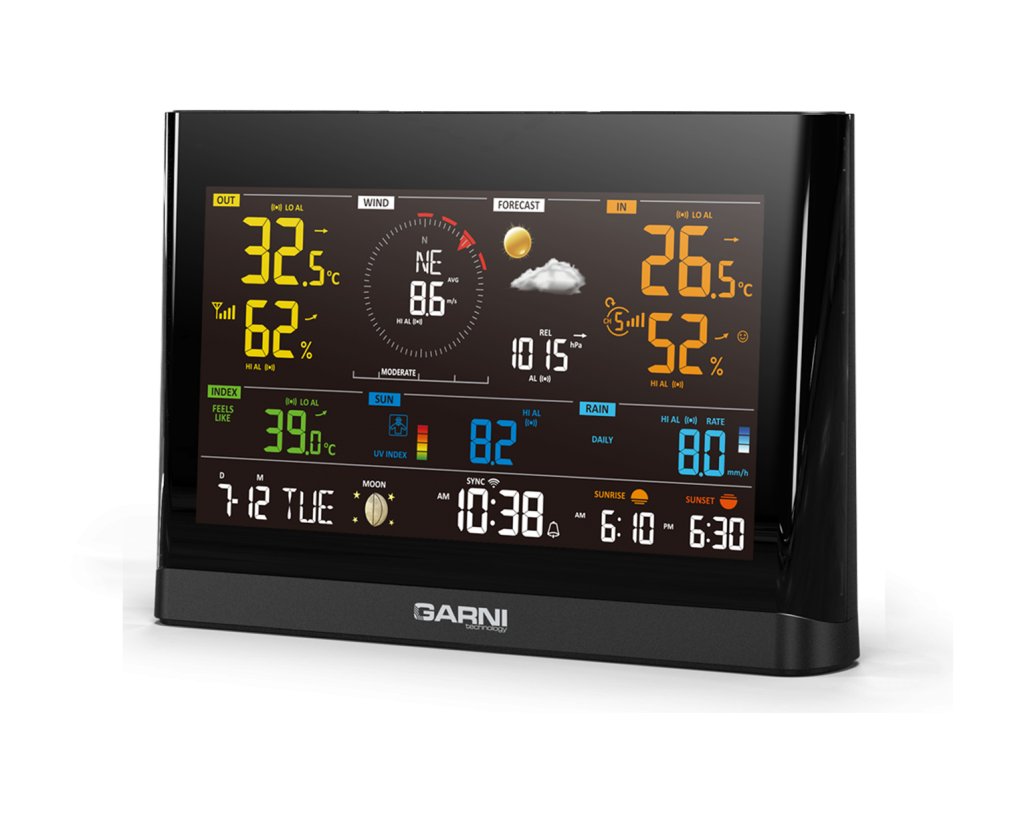

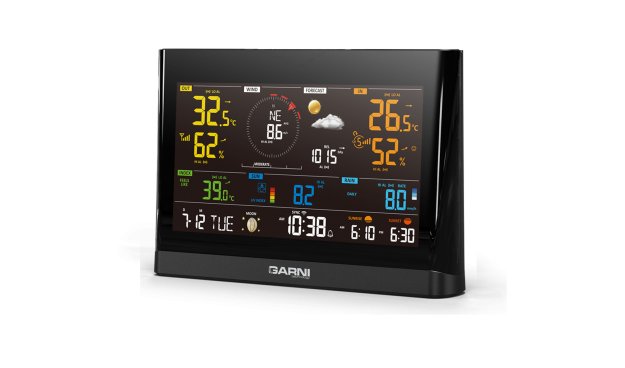

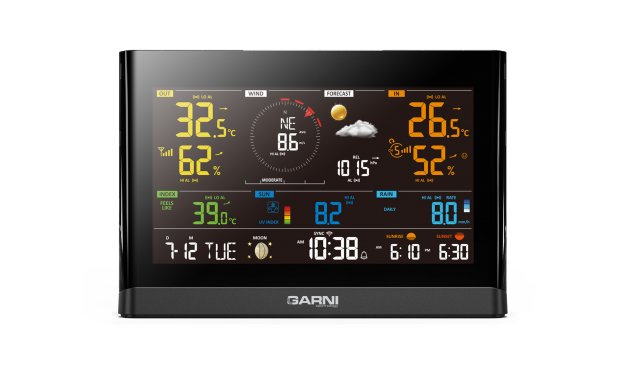

GARNI 1025 Arcus

price: 4995 CZK

The GARNI 1025 Arcus meteorological Wi-Fi station with an integrated 7-in-1 sensor is equipped with high-precision Swiss SENSIRION sensors with the possibility of calibration of some measured quantities. The main unit has an easy-to-read inverse color VA display that shows measured quantities, weather forecast, date, time and many other values.

Key features:

  • Inverse V. A. color display
  • Supports up to 8 wireless sensors
  • Comprehensive measurement of meteorological variables
  • 6 animated weather forecast icons
  • Data upload to Weather Underground
  • Time and date are adjusted from the Internet
  • UV radiation measurement
  • wireless sensor signal range up to 150 m in open area
  • 7 in 1 wireless sensor included

BUY

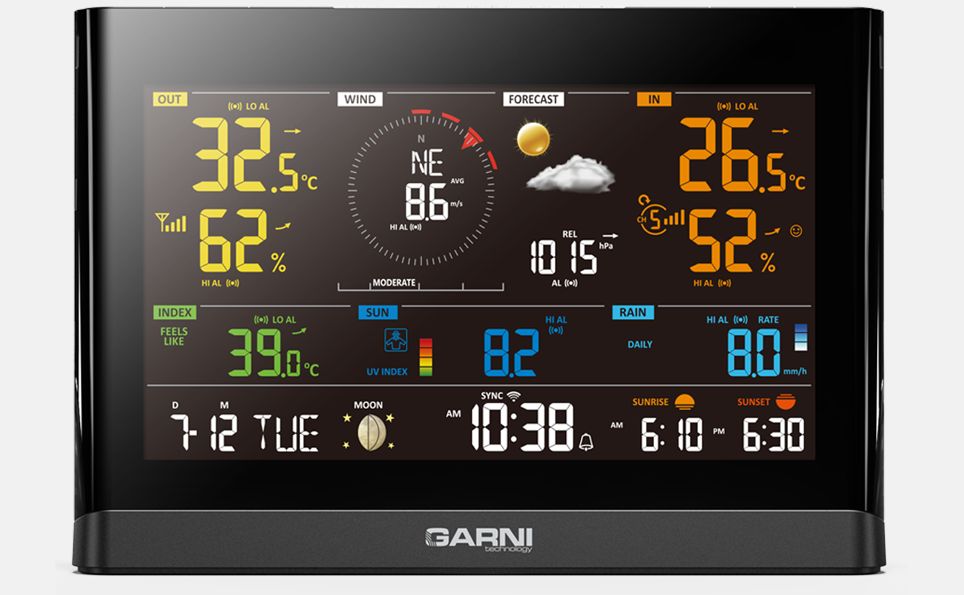

Well-designed V.A. display

Easy to read display with contrast adjustment in 15 levels or switch off the illumination of the display.

Well-designed V.A. display GARNI 1025 Arcus

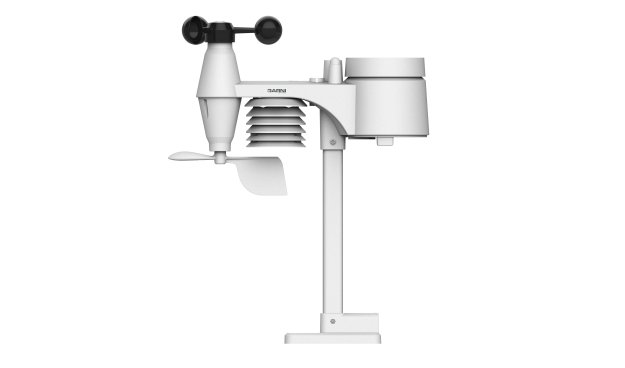

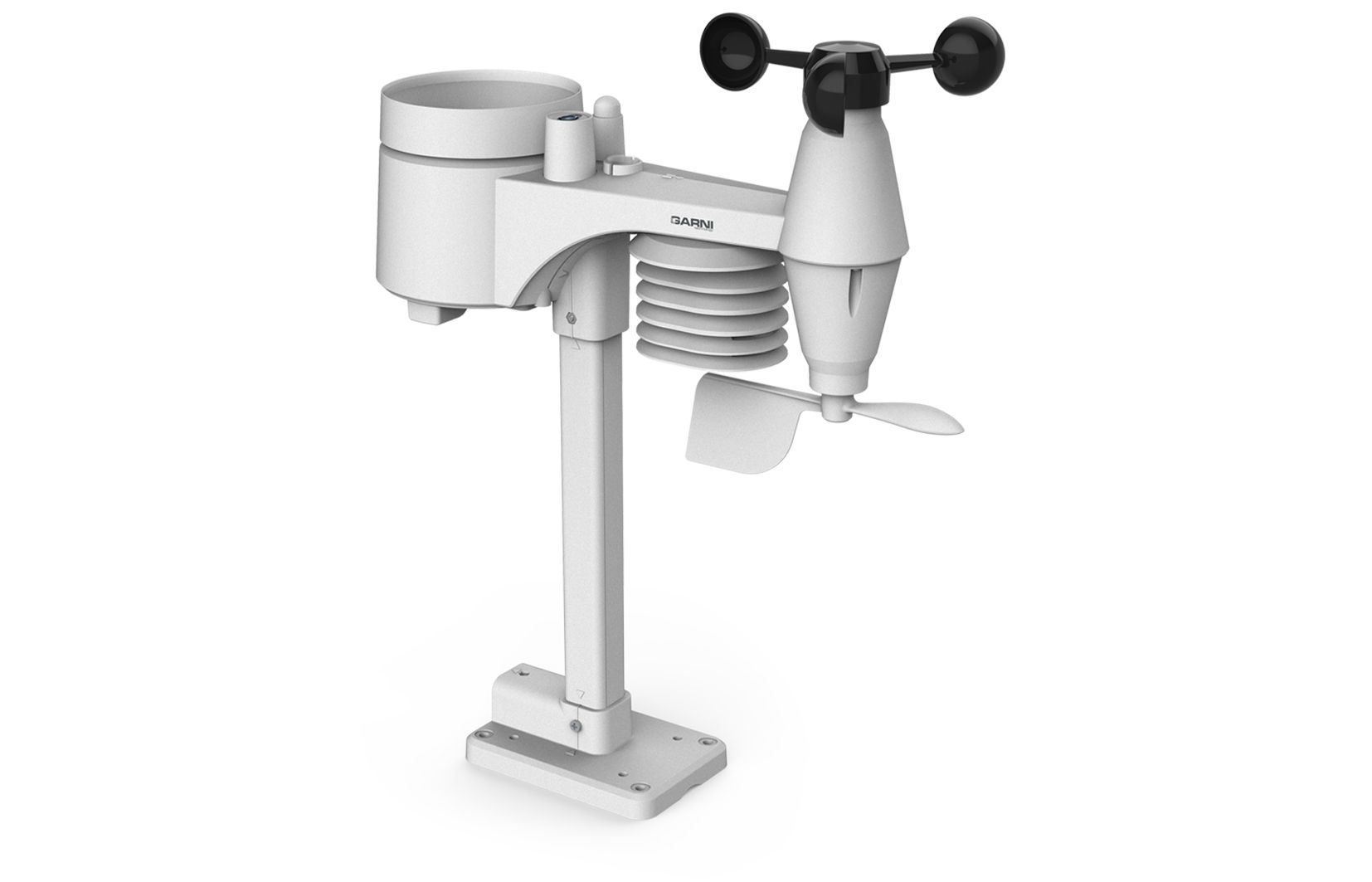

Comprehensive measurement

Integrated wireless sensor measures outside temperature and relative humidity, wind speed and direction, rainfall, UV index and solar radiation intensity.

Comprehensive measurement GARNI 1025 Arcus

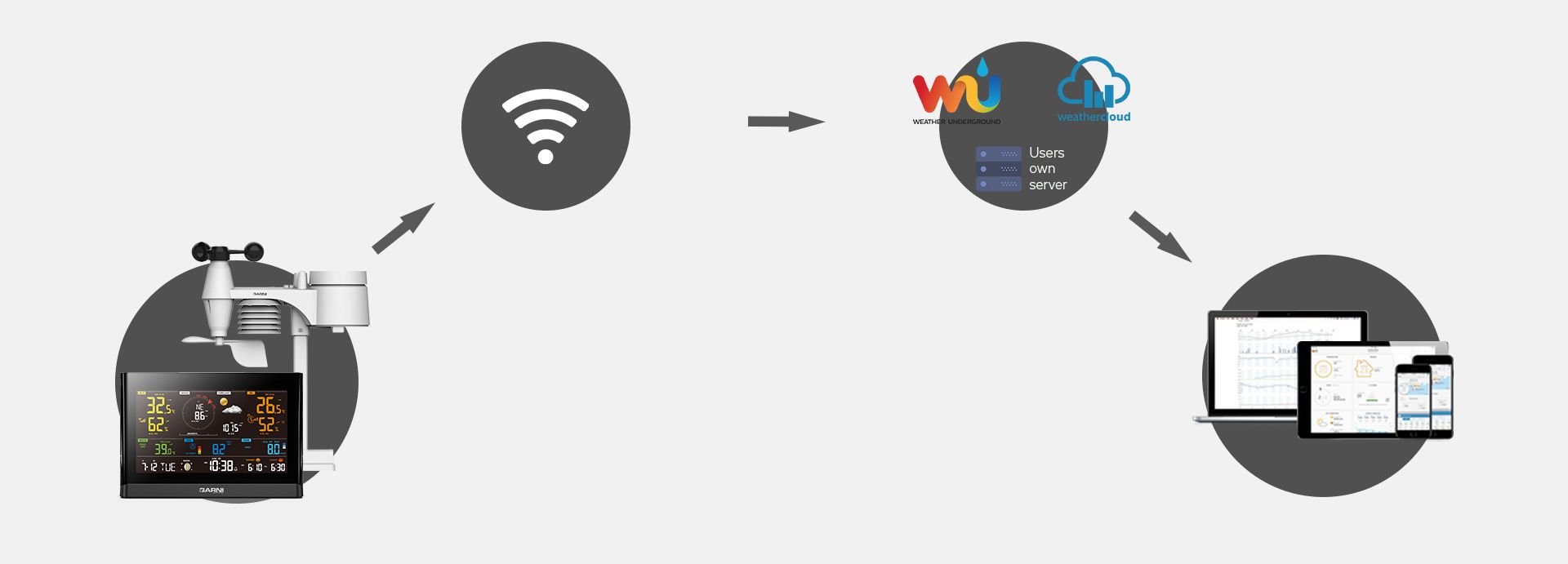

Access your data online

Transfer of measured data to Weather Underground, Weathercloud and possibly to the user's own server or to the pocasi-meteo.cz server.

Access your data online GARNI 1025 Arcus

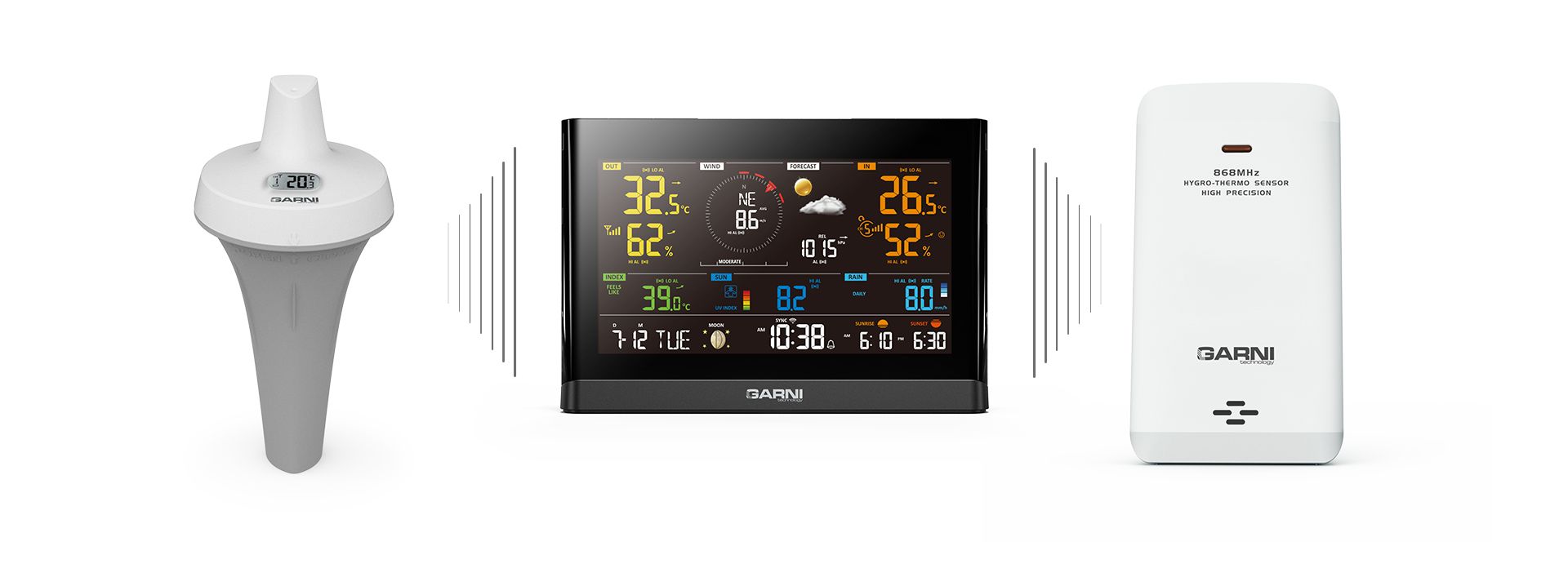

Option to connect additional wireless sensors

The ability to connect up to 7 wireless sensors ensures that you can monitor temperature and relative humidity from wherever you need it.

Option to connect additional wireless sensors GARNI 1025 Arcus
Indoor temperature measurement range / tolerance -40 ° C to + 70 ° C
operating temperature -5 ° C to + 50 ° C
(-40 to 0 ° C ± 2 ° C, 0 to + 40 ° C ± 1 ° C, +40 to + 70 ° C ± 2 ° C)
(SENSIRION sensor)
Resolution of internal temperature 0.1 ° C
External temperature measurement range / tolerance -40 ° C to + 80 ° C
operating temperature -40 ° C to + 60 ° C
(-40 to -20 ° C ± 1.5 ° C, -19.9 to + 5 ° C ± 1 ° C, + 5.1 to + 60 ° C ± 0.4 ° C)
(SENSIRION sensor)
Resolution of external temperature 0.1 ° C
Internal rel. humidity measurement range / tolerance 1% to 99%
(1 to 20% ± 6.5%, 21 to 80% RH ± 3.5%; 81 to 99% ± 6.5%) (SENSIRION sensor)
Resolution of internal relative humidity 1%
External rel. humidity measurement range / tolerance 1% to 99%
(1 to 20% ± 6.5%, 21 to 80% RH ± 3.5%; 81 to 99% ± 6.5%) (SENSIRION sensor)
Resolution of external relative humidity 1%
Bar. pressure measurement range / tolerance 540 to 1,100 hPa (relative pressure setting from 930 to 1050 hPa)
(700 to 1100 hPa ± 5 hPa, 540 to 696 hPa ± 8 hPa)
Resolution of barometric pressure measurement 1 hPa, 0.01 inHg, 0.1 mmHg
Wind speed measurement range / tolerance 0 to 50 m / s;
<5 m / s: ± 0.5 m / s;
Resolution of wind speed 0.1 m / s, 0.1 km / h, 0.1 mph, 0.1 knots
Wind direction measurement Yes
Resolution of wind direction 16 positions or 360 °
Measuring rainfall Yes
Resolution of rainfall 0.4 mm (0.0157 inches) ± 7%, or 1 shuttle overturn
UV radiation measurement range / tolerance 1 to 16, calibration possible
Illumination intensity measurement range / tolerance 0 to 200 Klux
Resolution of light intensity 0.01
Sunrise and Sunset Time yes, after entering the time zone and latitude and longitude
Graph No
Moon phase Yes
Principle of weather forecasts based on bar changes.
Altitude setting No
Absolute / relative barometric pressure display Yes Yes
Number of weather forecast icons 6 (sunny, partly cloudy, cloudy, rain, rain / storm, snow)
Signal range 150 m in open space - integrated wireless sensor
Data transmission interval wind speed and direction, UV index, solar radiation intensity 12 seconds, temperature, relative humidity and precipitation 24 seconds
Transmission frequency of wireless sensors 868 MHz
Number of Channels 7
Memory to MAX and MIN measured values memory for maximum and minimum values: indoor and outdoor temperatures and relative humidity, sensory temperatures, Wind Chill, dew point, temperature index, relative and absolute barometric pressure
memory for maximum values: average value of wind speed and wind gust, UV index, solar intensity and current precipitation intensity
memory for measured values ​​stored every hour for the past 24 hours with time and date of recording
Internal memory yes, to save the settings (time and date, alarm time, MAX and MIN measured values, measured values ​​affecting the weather in the last 24 hours, alarm of reaching set values, history of individual channels, set units of measurement, Wi-Fi settings and data server
Alarm of upper and lower temperature limits Yes
Alarm of upper and lower limit of relative humidity Yes
Other alarms alarm of upper and lower limits of indoor and outdoor temperature and relative humidity, sensory temperature, dew point
alarm of the upper limit of the temperature index, UV index, solar radiation intensity
Wind Chill low limit alarm
alarm of barometric pressure change in the past 10 minutes
alarm adjustable upper limits of hourly total precipitation
alarm adjustable upper wind speed limit
indication of reaching the upper or lower limit by an audible signal and a flashing icon and the measured value on the display
Display of the Wind Chill value yes, range -65 to + 18 ° C (at wind speed> 4.8km / h)
Date Yes, controlled after connecting to the Internet, or manually
Time Yes, controlled after connecting to the Internet, or manually
Alarm Yes
Snooze yes, after 5 minutes
Date format 12/24 hours
Time zone yes, from -12 to +13 hours
USB host No
Wi-Fi standard 802.11 b / g / n
Wi-Fi frequency 2.4 GHz
Data sending server Weather Underground, Weathercloud, pocasi-meteo.cz, own server
Dimensions of the main unit display 163 x 88 mm, VA display, possibility of adjusting the contrast in 15 steps
Digit size - main unit time 11.5 mm, abbreviation of the name of the day 8.5 mm, date 9 mm, temperature 17.5 mm, relative humidity 15 mm, barometric pressure 8 mm, sensory temperature / dew point / temperature index / Wind Chill 11 mm, risk time
Main Unit Display Illumination two levels of brightness, automatic lighting function based on ambient light intensity
Wireless sensor display No
Power supply main unit mains adapter 100 - 240 V, 50/60 Hz, 0.5 A / 5 V, 1 A, backup batteries 3 pcs 1.5 V type AAA (micropencil, not included)
integrated wireless sensor 3 pcs 1.5 V type AA (pencil, not included),
Overall dimensions main unit 202 x 138 x 38 mm
343.5 x 393.5 x 136 mm
Weight main unit 510 g (without batteries)
integrated wireless sensor 688 g (without batteries)
Color main unit black
integrated wireless sensor 7-in-1 light gray, pinwheel black
Option to stand / hang up the sensor main unit yes / yes
integrated wireless sensor yes / no - possibility of mounting on a mast
Rainfall needed to flip the rocker 0.254 mm
Stormy warning yes flashing weather forecast icon
Heat index yes, outdoor temperature index, range +26 to + 50 ° C
Display of the dew point value yes, outdoor, range -20 to + 80 ° C
Other functions outdoor feeling temperature -65 ° C to + 50 ° C (FEELS LIKE)
risk time of exposure to sunlight
Supported router security WPA / WPA2, OPEN, WEP (WEP only supports hexadecimal passwords)
Rainfall total measurement range 0 - 19,999 mm
Change log:

Adds support for CH1-4 channel upload for Weather Underground and 3rd URL (3rd URL required to use same API format as WU).

Please note that Weather Underground don’t have CH1-4 data display feature on their web page at the moment
v1.01 download
Note:
This firmware integrates the previous firmware version.

Change log:

- Adds support for CH1-4 channel upload for Weather Underground and 3rd URL (3rd URL required to use same API format as WU). Please note that Weather Underground don’t have CH1-4 data display feature on their web page at the moment.

- Reduced upload interval to the Weathercloud server to 1 minute to support paid Pro and Premium accounts.
v1.01 download
